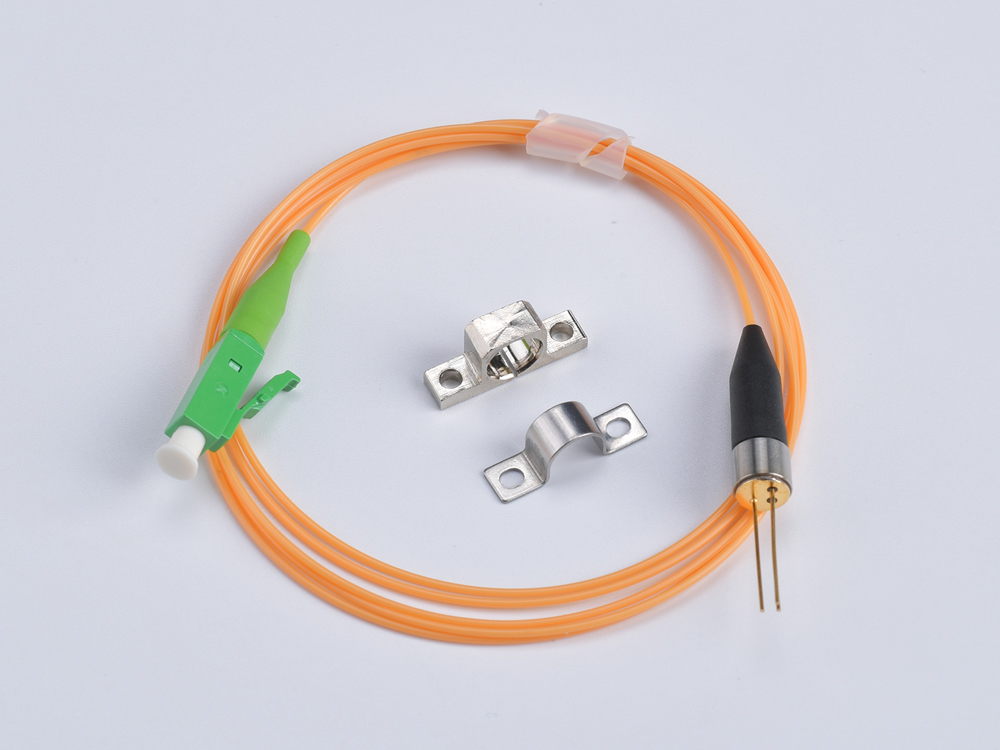

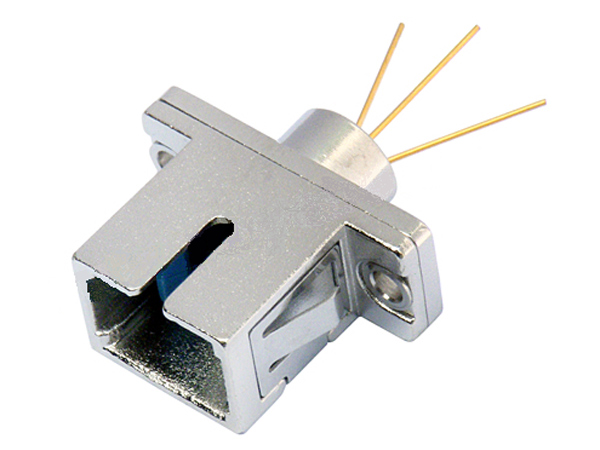

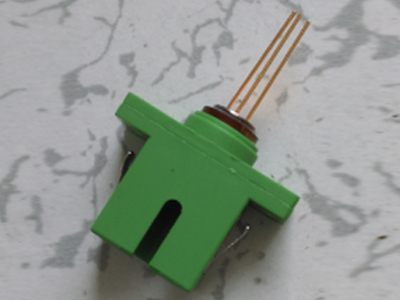

InGaAs PIN COMPONENT
Features
- High response,flat structure of InGaAs PIN detector
- Low capacitance and low dark current
- Operating wavelength of 1100~1650nm
- Power detector
Applications
CATV Transmission
Other Analog or Digital Optical Transmission
Absolute Maximum Ratings
| Parameter | Symbol | Ratings | Unit |
| Storage Temperature | Tstg | -40~+100 | ℃ |
| Operating Temperature | Top | -40~+85 | ℃ |
| Max Input Power | Pmax | +4 | dBm |
| Operating Voltage | Vop | 5 | V |
| PD Reverse Voltage | VR(PD) | 25 | V |
| Soldering Temp | - | 260 | ℃ |
| Soldering Time | - | 10 | S |
Optical & Electrical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Wavelength Range | λ | 1100 | - | 1650 | nm | - |
| Power Range | P | -70 | - | +4 | dBm | V,=5V |
| Active Diameter | Ad | - | 75 | - | um | - |
| Dark Current | Id | - | 0.2 | 0.5 | nA | - |
| Responsivity | R | - | 0.85 | 0.90 | A/W | λ=1310 nm |
| - | 0.90 | 0.95 | λ=1550 nm | |||
| Frequency Bandwidth | Bw | 1 | - | 2000 | MHz | - |
| Frequency Response | Fr | - | ±0.5 | - | dB | - |
| Capacitance | Ct | - | 0.65 | 0.75 | Pf | - |
| Response Time | Tr | 0.1 | - | - | ns | - |
| Return Loss | Rl | - | - | -45 | dB | - |
| CSO | - | - | -70 | - | dBc | 45~860MHz |
| CTB | - | - | -80 | - | dBc | 45~860MHz |

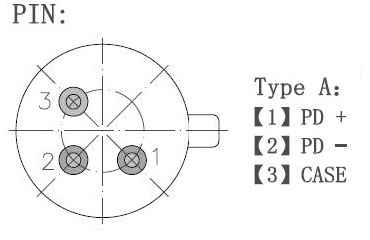

PIN Definition

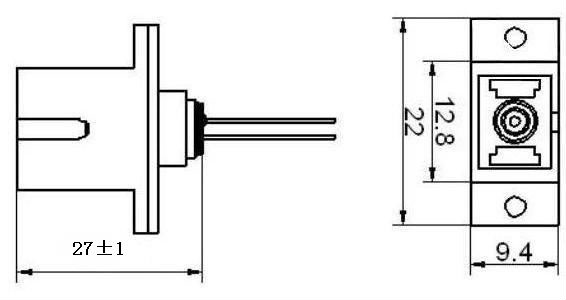

Drawing
