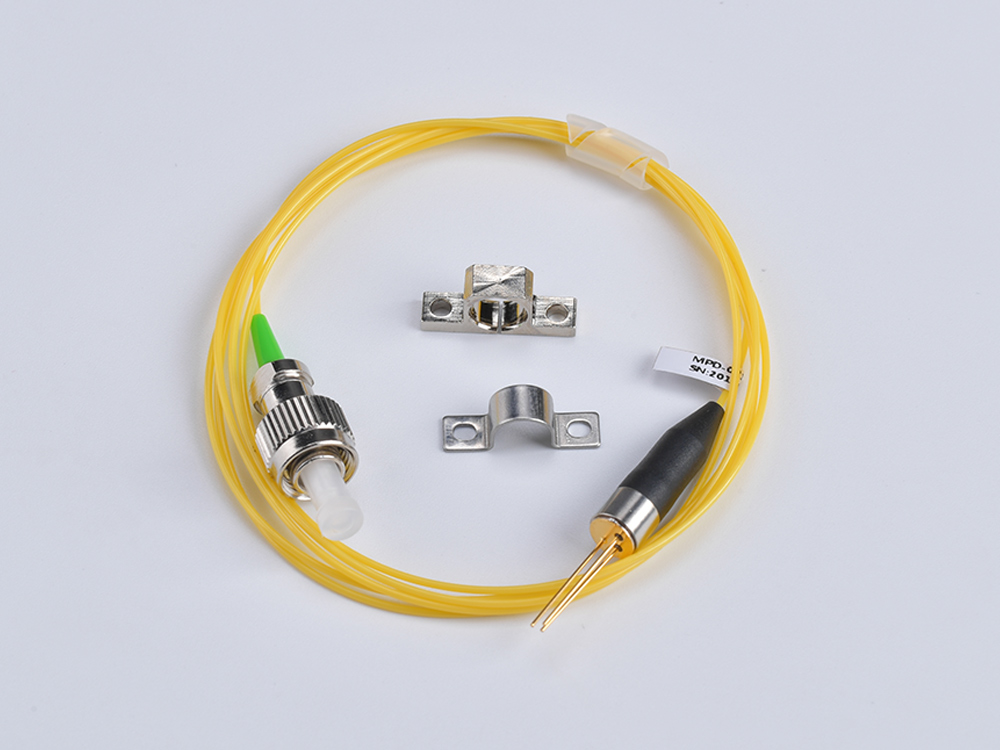

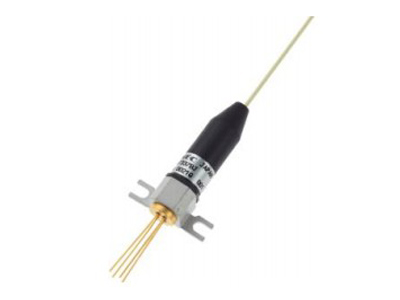

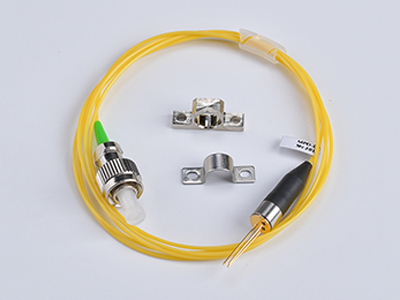

OTDR System

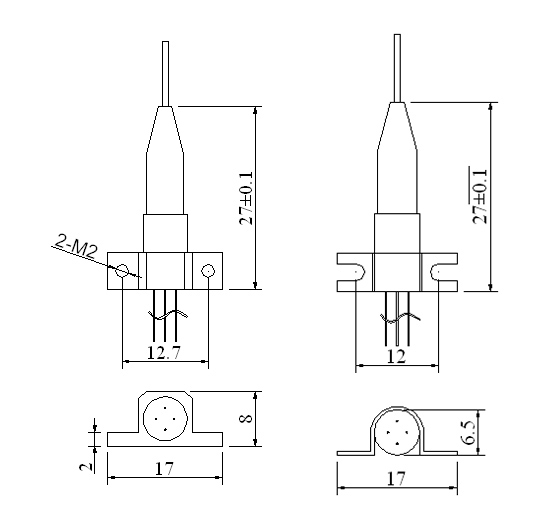

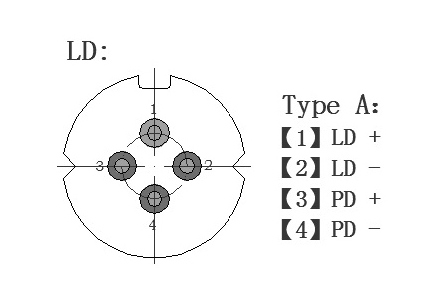

Parameter | Symbol | Min. | Typical | Max. | Unit |
Pulsed Forward Current | IFP | - | - | 500 | mA |
Reverse Voltage | VR | - | - | 2 | V |
Reverse Voltage (monitor PD) | VRM | - | - | 10 | V |
Reverse Current (monitor PD) | IFPM | - | - | 2 | mA |
Operating Case Temperature | TC | 0 | - | 60 | ℃ |
Storage Temperature | Tstg | -40 | - | 85 | ℃ |
Lead Soldering Temperature | Tsld | - | - | 260(10s) | ℃ |
Relative Humidity (noncondensing) | RH | - | - | 85 | % |
Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
Forward Voltage | VFP | - | 2.0 | 2.5 | V | IFP = 200 mA, PW = 10 μs, Duty = 1% |
Threshold Current | Ith | - | 5 | 10 | mA | - |
Optical Output Power From SM Fiber | Pf | 20 | 40 | - | mW | IFP =200 mA, PW = 10 μs, Duty = 1% |
Center Wavelength | λc | 1530 | 1550 | 1570 | nm | IFP = 200 mA, PW = 10 μs, Duty = 1% |
Spectral Width | σ | - | - | 4 | nm | RMS (−3 dB) |
Rise Time | tr | - | 0.5 | 1.0 | ns | 20-80% |
Fall Time | tf | - | 0.5 | 1.0 | ns | 80-20% |
Monitor Current | Im | 0.05 | - | 2 | mA | VRM = 5 V |
