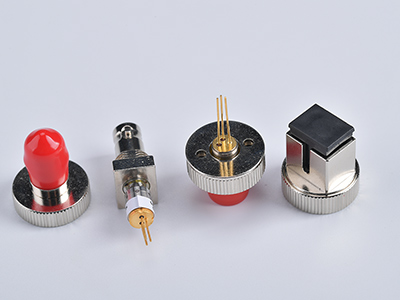

Large Area Pin Component
Features
- Small dark current
- High reliability
- High Accuracy
Applications
Power Meter
Absolute Maximum Ratings
| Parameter | Symbol | Ratings | Unit |
| Storage Temperature | Tstg | -40~+100 | ℃ |
| Operating Temperature | Top | -40~+85 | ℃ |
| Operating Voltage | Vop | 5 | V |
| PD Reverse Voltage | VR(PD) | 25 | V |
| Soldering Temp | - | 260 | ℃ |
| Soldering Time | - | 10 | S |
Optical & Electrical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition | ||
| Wavelength Range | λ | 850 | - | 1700 | nm | - | ||
| Power Range | P | - | - | 6 | dBm | Vop=5V | Attenuation | 0dB |
| - | - | 16 | 10dB | |||||
| - | - | 26 | 20dB | |||||
| - | - | 36 | 30dB | |||||
| Dark Current | Id | - | - | 2 | nA | 300μm | ||
| 5 | 1000μm | |||||||
| 10 | 2000μm | |||||||
| Responsivity | R | - | 0.85 | - | A/W | λ=1310 nm | Attenuation | 0dB |
| - | 0.083 | - | 10dB | |||||
| - | 0.012 | - | 20dB | |||||
| - | 0.001 | - | 30dB | |||||
| Accuracy | - | - | - | ±0.1 | dB | - | ||
| Capacitance | Ct | - | - | 25 | Pf | - | ||
| Response Time | Tr | - | - | 10 | ns | - | ||

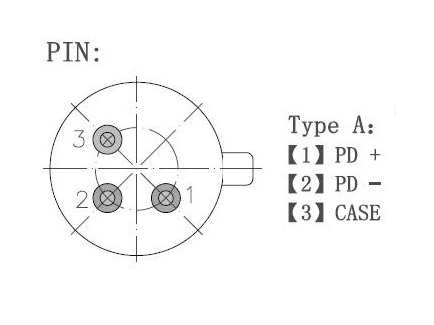

Pin Definition

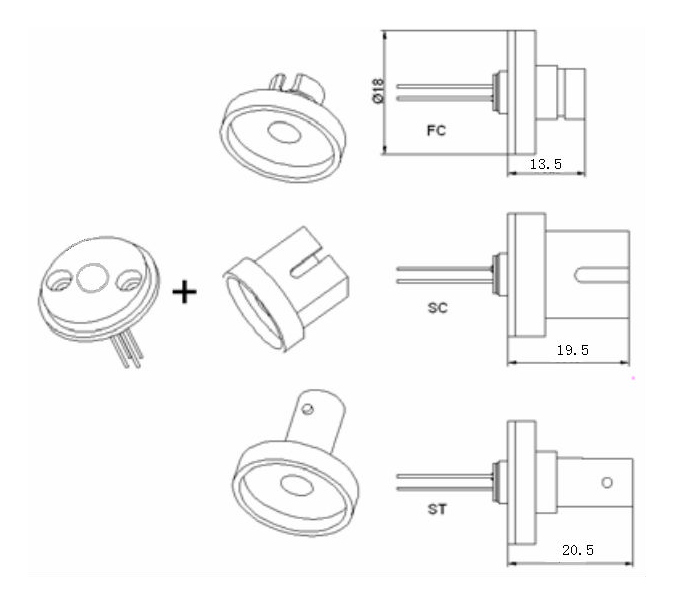

Drawing

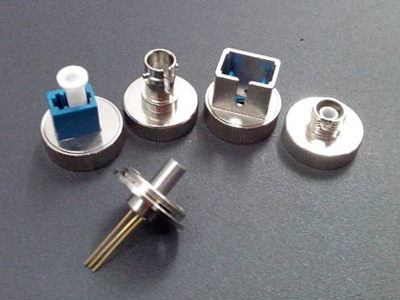

Order Information
CH-XXX
| C | H | -X | X | X |
| Mode | Product | Measure Range | Photosensitive Surface | Connector |
| - | Huge Area | R00：-70 ~ +6 dBm R04：-66 ~ +10 dBm R10：-60 ~ +16 dBm R14：-56 ~ +20 dBm R20：-50 ~ +26 dBm R24：-46 ~ +30 dBm ............ | A03：300μm A05：500μm A10：1000μm A20：2000μm ......... | F：FC S：SC T：ST L: LC 3：FC&SC&ST |
