BOSA TOSA ROSA

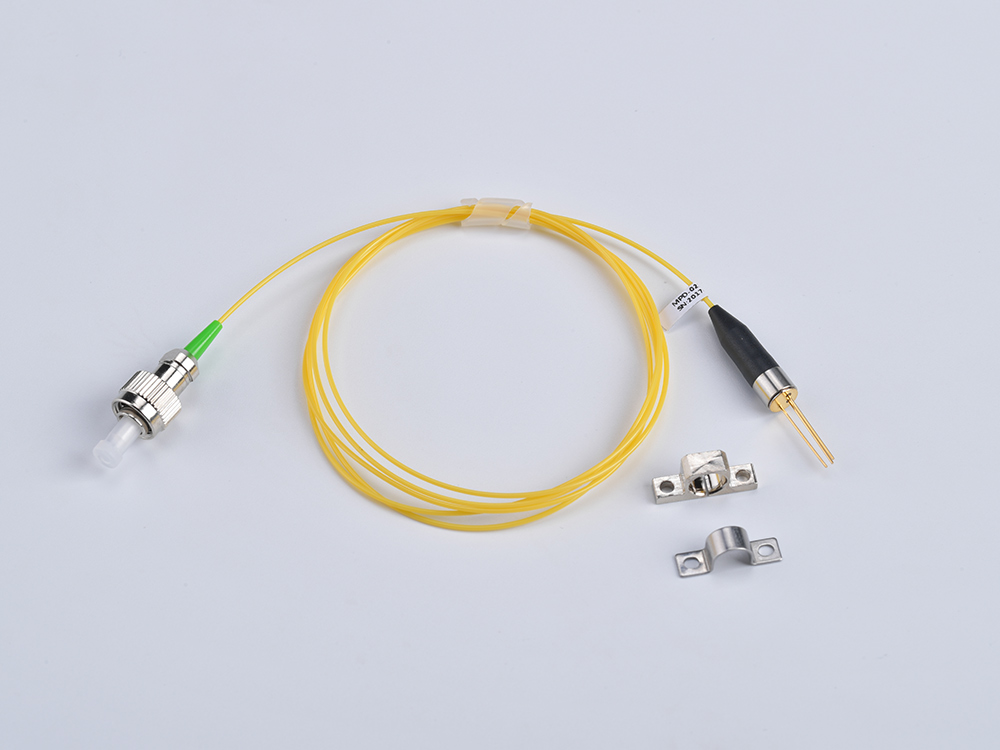

Pigtailed PIN TIA ROSA

Pigtailed PIN TIA ROSA

Features

High sensitive and high reliability
Data rate up to 155Mbps, 622Mbit/s, 1.25Gbit/s,2.5Gbit/s
3.3V operating voltage
TO-46 4pin/5pin coaxial package with pigtail

Request a Quote

Applications

Telecommunication

Optical & Electrical Characteristics

(All measurements are at Case temperature of 25℃)

PIN receiver type (up to 155Mbps)
Parameter		Symbol	Min.	Typ	Max.	Unit	Remark
Supply Voltage		VCC	3.0	-	3.6	V	-
Supply Current		ICC	-	-	35	mA	-
Data out Rise Time (10 - 90%)		tr	-	-	4.5	ns	λ = 1300 nm, Pf =10µW
Data out Fall Time (10 - 90%)		tf	-	-	4.5	ns	λ = 1300 nm, Pf =10µW
Bandwidth		BW	115	-	-	MHZ	λ = 1300 nm, Pf =10µW
Saturation Power		Psat	-3	-	-	dBm	λ=1310nm
Wavelength		λ	1260	-	1620	nm	-
Sensitivity		Sen	-	-	-36	dBm	λ = 1300 nm, 155 Mbps,BER 10-10
PIN receiver type (up to 622Mbps)
Parameter		Symbol	Min.	Typ.	Max.	Unit	Remark
Supply Voltage		VCC	3.0	-	3.6	V	-
Supply Current		ICC	-	-	30	mA	-
Low-Frequency Cut off		Lf	-	-	26	KHZ	-
Bandwidth		BW	435	550	-	MHZ	-
Saturation Power		Psat	-3	-	-	dBm	λ=1310nm
Wavelength		λ	1260	-	1620	nm	-
Sensitivity		-	-	-33	-30	dBm	Input optical siganl λ=1310nm, Data rate =622Mbps, BER = 10-10
PIN receiver type (up to 1.25Gbps)
Parameter		Symbol	Min.	Typ.	Max.	Unit	Remark
Supply Voltage		VCC	3.0	3.3	3.6	V	-
Supply Current		ICC	-	30	40	mA	-
Small-Signal Bandwidth		Bw	700	-	-	MHZ	-
Low-Frequency Cut off		Lf	-	-	115	KHZ	-
Rise /Fall Time(20%~80%)		Tr/f	-	300	400	ps	λ = 1310 nm, P=-24dBm
Saturation Power		Psat	0	-	-	dBm	λ=1310nm
Wavelength		λ	1260	-	1620	nm	-
Sensitivity		-	-	-	-26	dBm	λ=1310nm,1.25GbpsBER=1E-10,PRB7
PIN receiver type (up to 2.5Gbps)
Parameter		Symbol	Min.	Typ.	Max.	Unit	Remark
Supply Voltage		VCC	3.0	3.3	3.6	V	-
Supply Current		ICC	-	44	60	mA	-
Small-Signal Bandwidth		Bw	1.65	-	-	MHZ	-
Low-Frequency Cut off		Lf	-	-	5	KHZ	-
Rise /Fall Time(20%~80%)		Tr/f	-	150	200	ps	λ = 1310 nm, P=-18dBm
Saturation Power		Psat	-3	-	-	dBm	λ=1310nm
Wavelength		λ	1270	-	1620	nm	-
Sensitivity		-	-	-	-22	dBm	λ = 1310 nm, 2.5Gbps,BER=1E-10,PRBS7
APD receiver type (up to 1.25/2.5Gbps)
Parameter	Symbol		Min.	Typ.	Max.	Unit	Remark
Supply Voltage	VCC		3.0	3.3	3.6	V	-
Supply Current	ICC		-	45	65	mA	-
Apd Breakdown Voltage	Vbr		-	45	-	V	Id=10µA
Small-Signal Bandwidth	Bw		1.65	2.5	-	GHZ	M=10
Low-Frequency Cut off	Lf		-	3	5	KHZ	-
Saturation Power	Psat		-7	-	-	dBm	λ=1310nm
Single Ended Output Impedance	Ro		40	-	-	ohm	-
Wavelength	λ		1260	-	1620	nm	-
Sensitivity			-	-	-34	dBm	λ=1310nm,@1.25Gbps,BER=1E-10,PRBS7,ER=10dB
Sensitivity			-	-	-30	dBm	λ=1310nm,@2.5GbpsBER=1E-10,PRBS7,ER=10dB

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit	Test Condition
Power Supply	VCC	-	3.6	V	-
Operating Temperature	Top	-40	+85	℃	-
Storage Temperature	Tstg	-40	+85	℃	-
Fiber Input Power	PIN	-	-3	dBm	-
Lead Soldering Temperature	TS	-	260	℃	-
Lead Soldering Time	-	-	10	S	TS =260℃

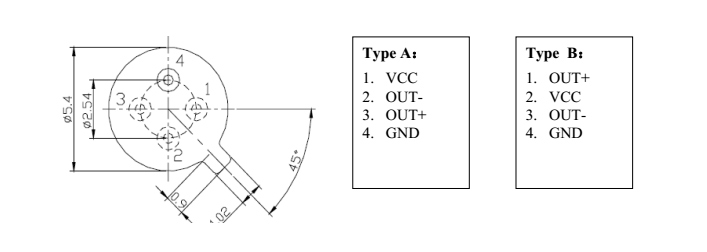

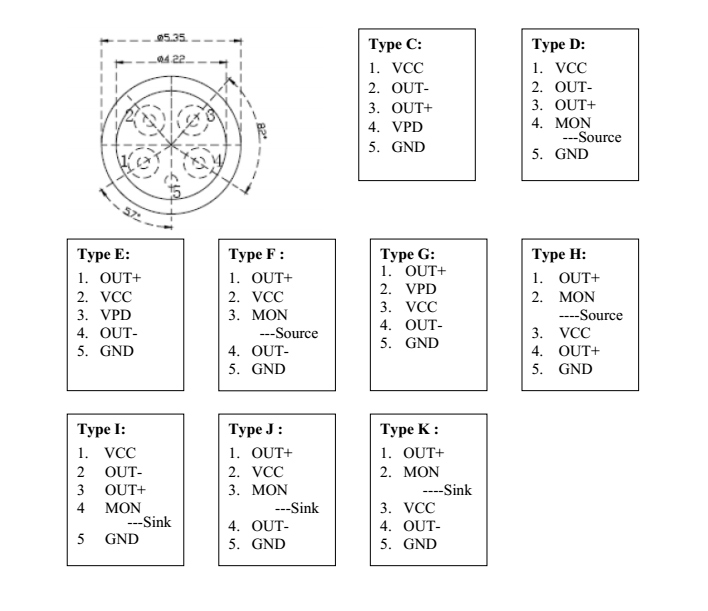

Pin Definition

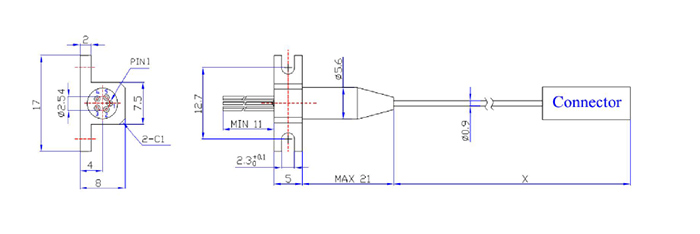

Drawing
