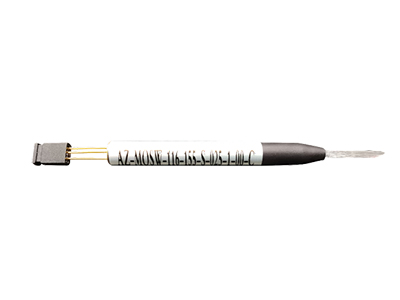

1X8 MEMS OSW Cylindric Device

1X8 MEMS OSW Cylindric Device

Description

Product Function

MEMS OSW is based on micro-electro-mechanical system (MEMS) technology, which achieved low insertion loss and highly repeatability by rotating the mirror of MEMS chip.

MEMS OSW is mainly used in optical cross and connection (OXC) system, optical add/drop system, measure instrument system and optical signal monitoring system.

The products are Telcordia GR-1073-CORE qualified, and RoHS compliant.

Request a Quote

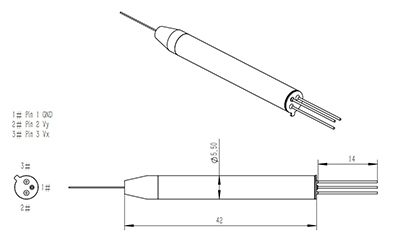

Product Configurations

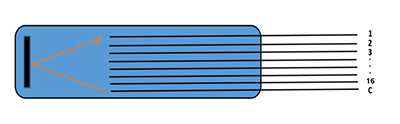

Note: “C”: common port

“1、2、3...16”:possible selected output ports=1~16

Optic Specification

No.	Parameters	Unit	Value	Notes
2.1	Wavelength	nm	1528~1565	or customer specify
2.2	Test Wavelength	nm	1550	-
2.3	OSW Channels	-	8	-
2.4	Insertion Loss	dB	≤1.0	@CWL±20nm, 23°C without connectors
2.5	Return Loss	dB	≥40	-
2.6	Repeatability	dB	≤0.1	-
2.7	Crosstalk	dB	≥40	-
2.8	Polarization Dependence Loss	dB	≤0.2	-
2.9	Wavelength Dependence Loss	dB	≤0.3	@CWL±20nm, 23°C
2.10	Temperature Dependence Loss	dB	≤0.4	-
2.11	Operation Temperature	°C	-5~70	-
2.12	Storage Temperature	°C	-40~85	-
2.13	Switch Time	ms	≤30	-
2.14	Durability	cycle	≥1x109	-
2.15	Maximum optical Power	mW	≤500	-
2.16	Switch Mode	-	Non-latching	-
2.17	Control Voltage	V	≤60v	-

Operation/storage Temperature/humidity

NO	PARAMETER	SPECIFICATION	UNITS	NOTE
3.1	Operation Temperature	-5~65	°C	-
3.2	Storage Temperature	-40~85	°C	-
3.3	Operation Humidity	5~95	%RH	-
3.4	Storage Humidity	5~95	%RH	-

Pigtail and Connector

NO	PARAMETER	SPECIFICATION	UNITS	NOTE
4.1	Fiber Type	G657A2 or G657B3 250um bare fiber	-	-
4.2	Fiber Pigtail(All Ports)	250um fiber	-	-

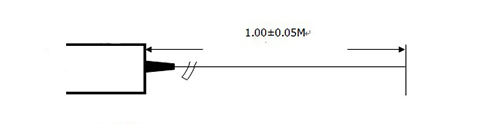

4.3	Fiber Length(All Ports) (customer specify）	1.00±0.05（customer specify）	m	with connector length
4.4	Optical Connector (All port)	None （customer specify）	-	-
