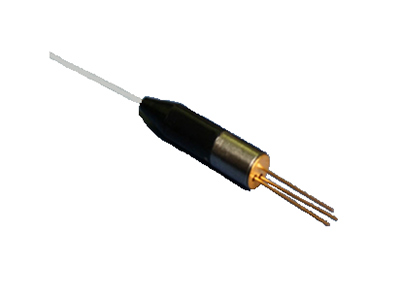

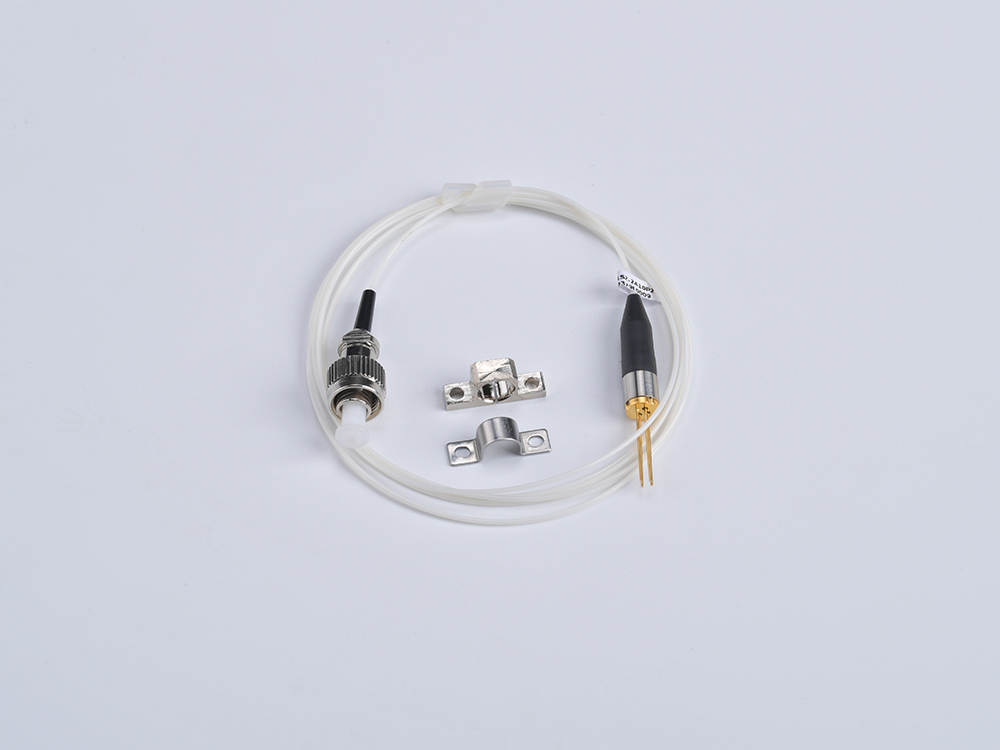

1100nm-1650nm Detector Pigtailed Components
Features
- High response,flat structure of InGaAs PIN detector
- Low capacitance and low dark current
- Operating wavelength of 1100~1650nm
- Single-mode fiber coaxial package
Applications
CATV transmission optical receiver
RF transmission optical receiver
Other Analog receiver/ Power detector
Absolute Maximum Ratings
| Parameter | Symbol | Ratings | Unit |
| Storage Temperature | Tstg | -40~+100 | ℃ |
| Operating Temperature | Top | -40~+85 | ℃ |
| Max Input Power | Pmax | +6 | dBm |
| Operating Voltage | Vop | 5 | V |
| PD Reverse Voltage | VR(PD) | 15 | V |
| Soldering Temp | - | 260 | ℃ |
| Soldering Time | - | 10 | S |
Optical & Electrical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Wavelength Range | λ | 1100 | - | 1650 | nm | - |
| Power Range | P | -70 | - | +6 | dBm | 5V |
| Active Diameter | Ad | 25 | - | 80 | um | - |
| Dark Current | Id | - | 0.2 | 0.5 | nA | 5V |
| Responsivity | R | - | 0.85 | 0.90 | A/W | λ=1310 nm |
| - | 0.90 | 0.95 | λ=1550 nm | |||
| Frequency Bandwidth | Bw | 1 | - | 10000 | MHz | - |
| Frequency Response | Fr | - | ±0.5 | - | dB | - |
| Capacitance | Ct | - | 0.5 | 0.65 | Pf | - |
| Response Time | Tr | 0.1 | - | - | ns | - |
| CSO | - | - | -70 | - | dBc | - |
| CTB | - | - | -80 | - | dBc | - |

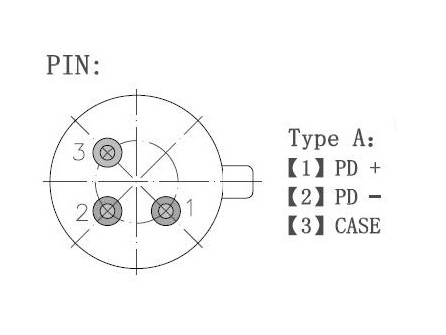

Pin Definition

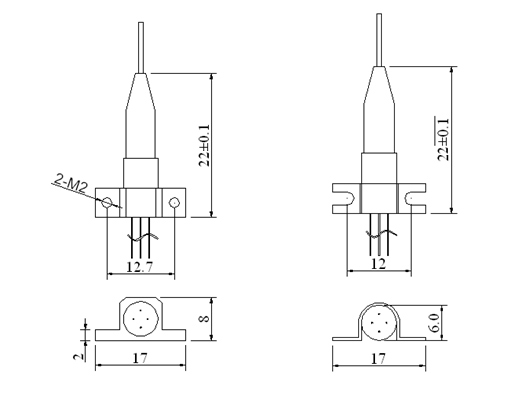

Drawing
Order Information
MPD-XXXXX
| M | PD | -X | X | X | X | X |
| Mode | Product Type | Bandwidth | Connector | Pigtail Length | Fiber Type | Responsivity |
| - | - | 02：2Gb/s 03：3Gb/s 05：5Gb/s 08：08Gb/s 10: 10Gb/s | 1：FC/APC 2：FC/PC 3：SC/APC 4：SC/PC 5：LC/PC 6：LC/APC W：Without | 05：0.5M 10：1.0M 15：1.5M | S9：9/125/900um S2：9/125/250um M5：50/125/900um M6：62.5/125/900um | R80：0.80~0.85(8G) R85：0.85~0.90(3G,5G) R90：0.90~0.95(2G) |
