MEMS VOA
Description
Product Function
Mirror MEMS attenuators are based on a micro-electro-mechanical system (MEMS) technology. The MEMS attenuators design achieves highly repeatable optical attenuation over C and/or L band through an electrically movable mirror on silicon.The products are Telcordia GR-1221-CORE qualified, and RoHS compliant.
- Channel equalization
- Gain and Slope Control in EDFA
- For ROADM power balance
- Receiver Protection/switch during transmitter turn-ons
- Low insertion loss
- Low polarization dependent
- Compact size
- Available in both normally open and normally closed states
- Excellent reliability
Optic Specification
| Parameters | Unit | AZ-MVOA |
| Operation Wavelength 1 | nm | 1528~1565 |
| Attenuation Type | - | Dark or Bright |
| Attenuation Range | dB | 40 |
| Insertion Loss 2 | dB | < 0.8 |
| Attenuation Resolution | - | Continue |
| WDL | dB | < 1.0@15dB |
| PDL | dB | < 0.2@15dB |
| Return Loss | dB | ≥50 |
| Response Time 3 | ms | 1 |
| Driving Voltage 4 | V | < 6 |
| Power Consumption | mW | < 10 |
| Operating Temperature | ℃ | -5~70 |
| Storage Temperature | ℃ | -40~85 |
| Max Optical Power | mW | 500 |
| Package Size（Dia× L） | mm | 5.5×19(Without boot) |
| Durability | Cycle | ≥109 |
| Note：1 Wavelength C, L, Full band is optional 2 Typical value 0.6dB, without connector 3 Full range 4 Maximum voltage for full range | ||
Operating and Storage Conditions
| Parameter | Specification | Unit |
| Operation Temperature | -5~70 | °C |
| Operation Humidity | 5~85 | %RH |
| Storage Temperature | -40~85 | °C |
| Storage Humidity | 5~85 | %RH |
| Input Optical Power | ≤500 | mW |

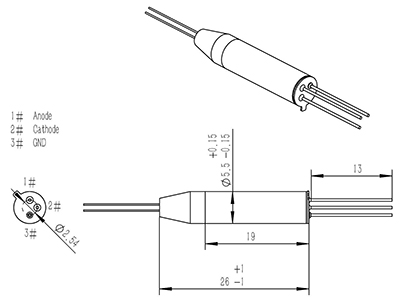

Mechanical Drawings
PIGTAIL AND CONNECTOR
| Parameter | Specification | Unit |
| Pigtail Type(All ports) | Corning SMF-28 ultra | - |
| Pigtail Length(All ports) | 1.0±0.1,or Customer defined | m |
| Connector Type(All ports) | Port1：FC,SC,LC,MU/PC,APC Port2： FC,SC,LC,MU/PC,APC Or Customer defined | - |
| Pigtail Color | Port1(INPUT)：Red Port2(OUTPUT)：Clear Or Customer defined | - |
