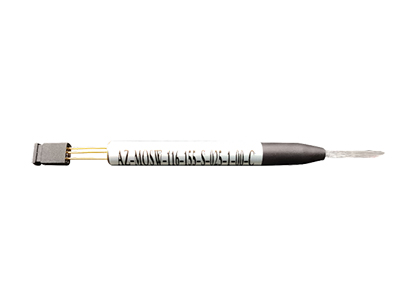

1X4 MEMS OSW Cylindric Device
Description
Product Function
MEMS OSW is based on micro-electro-mechanical system (MEMS) technology, which achieved low insertion loss and highly repeatability by rotating the mirror of MEMS chip.
MEMS OSW is mainly used in optical cross and connection (OXC) system, optical add/drop system, measure instrument system and optical signal monitoring system.
The products are Telcordia GR-1073-CORE qualified, and RoHS compliant.

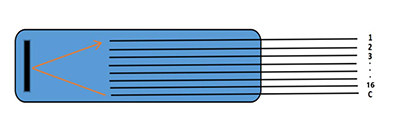

Note: “C”: common port
“1、2、3...16”:possible selected output ports=1~16
Related Product List| Customer Code | Customer P/N | Code | P/N |
| - | - | - | AZ-MOSW-14-C-S-025-1-00-CP |
| - | - | - | AZ-MOSW-14-C-S-025-1-00-M |
| - | - | - | - |
| - | - | - | - |
| - | - | - | - |
Optic Specification
| No. | Parameter | Unit | Value | Notes |
| 2.1 | Wavelength | nm | 1528~1565 | or customer specify |
| 2.2 | Test Wavelength | nm | 1550 | - |
| 2.3 | OSW Channels | - | 4 | - |
| 2.4 | Insertion Loss | dB | ≤0.8 | @CWL±20nm, 23°C without connectors |
| 2.5 | Return Loss | dB | ≥40 | - |
| 2.6 | Repeatability | dB | ≤0.1 | - |
| 2.7 | Crosstalk | dB | ≥40 | - |
| 2.8 | Polarization Dependence Loss | dB | ≤0.2 | - |
| 2.9 | Wavelength Dependence Loss | dB | ≤0.3 | @CWL±20nm, 23°C |
| 2.10 | Temperature Dependence Loss | dB | ≤0.4 | - |
| 2.11 | Operation Temperature | °C | -5~70 | - |
| 2.12 | Storage Temperature | °C | -40~85 | - |
| 2.13 | Switch Time | ms | ≤30 | - |
| 2.14 | Durability | cycle | ≥1x109 | - |
| 2.15 | Maximum optical Power | mW | ≤500 | - |
| 2.16 | Switch Mode | - | Non-latching | - |
| 2.17 | Control Voltage | V | ≤60v | - |
Operation/storage Temperature/humidity
| NO | Parameter | Specification | Unit | Note |
| 3.1 | Operation Temperature | -5~65 | °C | - |
| 3.2 | Storage Temperature | -40~85 | °C | - |
| 3.3 | Operation Humidity | 5~95 | %RH | - |
| 3.4 | Storage Humidity | 5~95 | %RH | - |
Pigtail and Connector
| NO | Parameter | Specification | Unit | Note |
| 4.1 | Fiber Type | G657A2 or G657B3 250um bare fiber | - | - |
| 4.2 | Fiber Pigtail(All Ports) | 250um fiber | - | - |
| 4.3 | Fiber Length(All Ports) (customer specify） | 1.00±0.05（customer specify） | m | with connector length |
| 4.4 | Optical Connector (All port) | None （customer specify） | - | - |
Mechanical Drawings
Optic Ports and Electronic Pins Definition
Electronic Pins Definition
| Pin NO. | Property | Note |
| 1 | GND | - |
| 2 | Anode(+)1 | Vx |
| 3 | Anode(+)2 | Vy |
| Port | U1(V) | U2(V) |
| 1 | U1 | U2 |
| 2 | U1 | U2 |
| 3 | U1 | U2 |
| 4 | U1 | U2 |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |

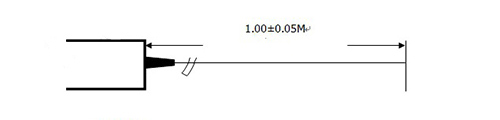

Fiber Length
Label Definition
On the module
P/N: xxxxxxxxxxx
S/N: xxxxxxxx
X=com,CH1,CH2,CH3……CHN
OthersESD Packing
RoHS and GR-1073 compliance
