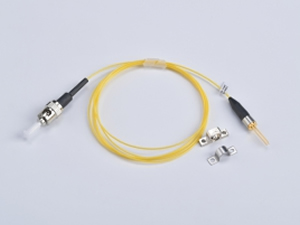

1625nm Pulse Laser Modules for OTDR

Our 1625nm pulse laser modules for OTDR are equipped with a high power FP chip with low threshold current and high-efficiency output. Capable of working with a high current, the pulsed laser module can operate in dual mode, pulse and direct current. The multi-mode fiber is optional. This laser diode is generally used in the communication and testing systems that use OTDR and Raman light reflection principles.

Absolute Maximum Ratings
Parameter Symbol Min. Typical Max. Unit
Pulsed Forward Current IFP

700 mA
Reverse Voltage VR

2 V
Reverse Voltage (monitor PD) VRM

10 V
Reverse Current (monitor PD) IFPM

2 mA
Operating Temperature TC 0
60 °C
Storage Temperature Tstg -40
85 °C
Lead Soldering Temperature Tsld

260(10s) °c
Relative Humidity (Noncoagulable) RH

85 %
Optical & Electrical Characteristics
Parameter Symbol Min. Typ. Max. Unit Notes
Forward Voltage VFP

3.0 V IFP = 400 mA, PW = 10 μs, Duty = 1%
Threshold Current Ith
20 35 mA
Optical Output Power From Fiber Pf 40

mW IFP =400 mA, PW = 10 μs, Duty = 1%
Center Wavelength λc 1620 1625 1630 nm IFP =400 mA, PW = 10 μs, Duty = 1%
Spectral Width σ

4 nm RMS (−3 dB)
Rise Time tr
0.5 2.0 ns 10-90%
Fall Time tf
0.5 2.0 ns 90-10%
Monitor Current Im 0.05
2 mA VRM =5 V

As an experienced FP pulsed diode laser (for OTDR system) manufacturer and supplier in China, our company also offers 8-10mw 1653.5nm Butterfly Laser Diode for gas detection, butterfly fiber coupled laser diodes, Pin TIA receiver, and more.
