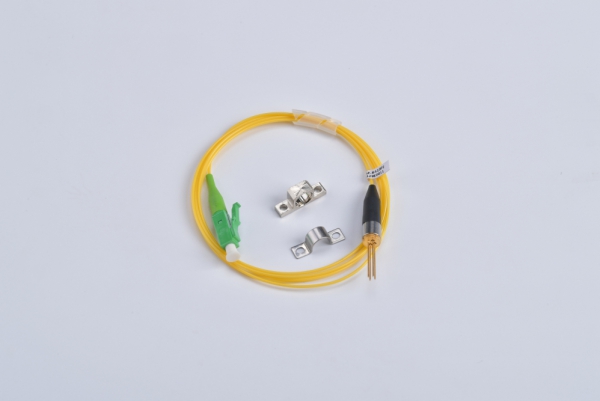

850nm Pigtailed Laser Diode Components
We can offer 850nm laser diode components with different output power, which is generally used in light source detection or instruments. We provides coaxial pigtail package or receptacle package according to customers’needs.
Optical & Electrical Characteristics| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Output Power | Po | 1 | | 3 | mW |
| Threshold Current | Ith | | 20 | 25 | mA |
| Operating Current | If | | 40 | 50 | mA |
| Operating Voltage | Vf | | 1.8 | 2.2 | V |
| Monitor Current | Im | 300 | | 800 | uA |
| Cent Wavelength | λc | 845 | | 860 | nm |
| Spectral Width(RMS) | Δλ | | 2 | 3 | nm |
| Spectral Shift | Δλ/ΔT | | | 0.2 | nm/℃ |
| Fiber | SM(4um or 9um)，MM，other | ||||
Our company is a professional 405nm-980nm red visible light laser diode modules manufacturer and supplier in China. Our products include DFB pigtailed laser diode device, butterfly fiber coupled laser diodes, InGaAs Coaxial Plug in laser diodes, and more.
