Tx CWDM Rx 1550nm BOSA

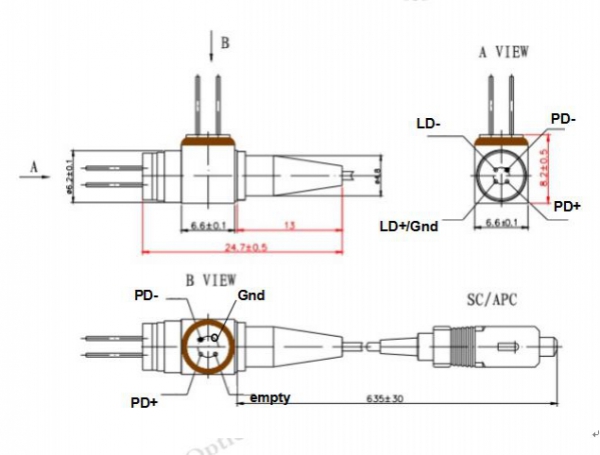

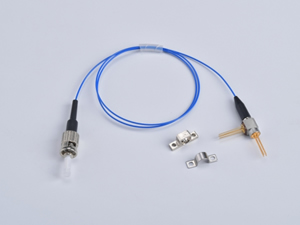

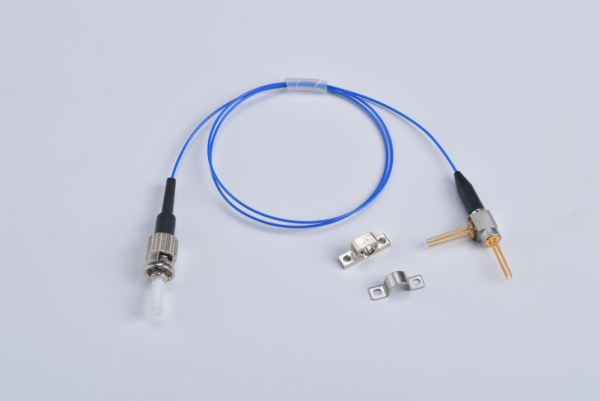

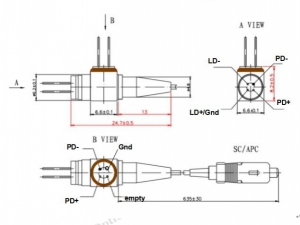

One end of the Tx CWDM Rx 1550nm BOSA is a CWDM laser, which is used to transmit signals, and the other end is an InGaAs detector, which is used to receive signals. The packaging form for this BOSA is a pigtailed package type, which makes it ideal for use in optical communication systems. Length and connector types can be customized according to customer requirements.
Absolute Maximum Ratings| Parameter | Symbol | Ratings | Unit |
| Forward Current (LD) | If(LD) | 150 | mA |
| Reverse Voltage (LD) | Vf(LD) | 2 | V |
| Operating Current (PD) | Ir(PD) | 2 | mA |
| Reverse Voltage (PD) | Vr(PD) | 20 | V |
| Operating Temp. | TOP | 0 ～+70 | ℃ |
| Storage Temp. | TST | -40~+85 | ℃ |
| Soldering Temp | - | 260 | ℃ |
| Soldering Time | - | 10 | S |
| Parameter | Symbol | Min | Typ | Max | Unit | Condition |
| Rated Output Power | Pout | 2.0 | - | 3.0 | mW | Iop=Ith+25 mA,Tc=25°C |
| Central Wavelength | λ | Note 2 | nm | Note 1 | ||
| Spectrum Width | Δλ | - | 0.5 | 1 | nm | CW |
| Threshold Current | Ith | - | 10 | 15 | mA | CW |
| Slope Efficiency | Es | 0.08 | - | - | W/A | CW,Tc=25℃ |
| 0.05 | - | - | W/A | CW,Tc=85℃ | ||
| Side-mode Suppression Ration | SMSR | 35 | 40 | - | dB | CW |
| Operating Current | Iop | - | Ith+45 | - | mA | CW |
| Tracking Error | TE | -1.2 | - | 1.2 | dB | Iop=Ith+25mA,Tc=0~70℃ |
| Optical isolation | Iso | 30 | - | - | dB | |
| Rise and Fall times | Tr/Tf | - | - | 0.5 | ns | CW |
| Monitor PD Current | Im | 100 | - | 1500 | uA | CW |
| Monitor PD Dark Current | Id | - | - | 100 | nA | CW |
| Parameter | Symbol | Min | Typ | Max | Unit | Condition |
| Wavelength Range | λ | 1520 | 1550 | 1580 | nm | CW |
| Overload | P | 3 | 5 | - | dBm | |
| Bandwidth | BW | 2500 | | - | MHz | - |
| Responsivity | R | 0.80 | 0.85 | - | A/W | λ =1550nm |
| Active Diameter | Ad | | 75 | | um | - |
| Dark Current | Id | - | - | 0.5 | nA | |
| Optical isolation | Iso | 25 | - | - | dB | λ =1470,1490,1610nm |
| Capacitance | Ct | - | 0.7 | - | Pf | - |
| Response Time | Tr | - | - | 0.4 | ns | - |
