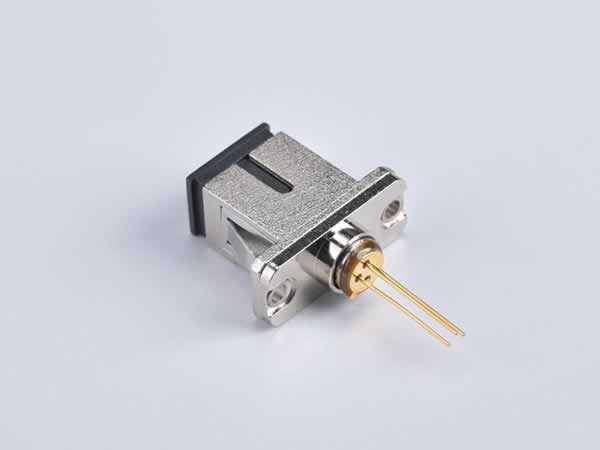

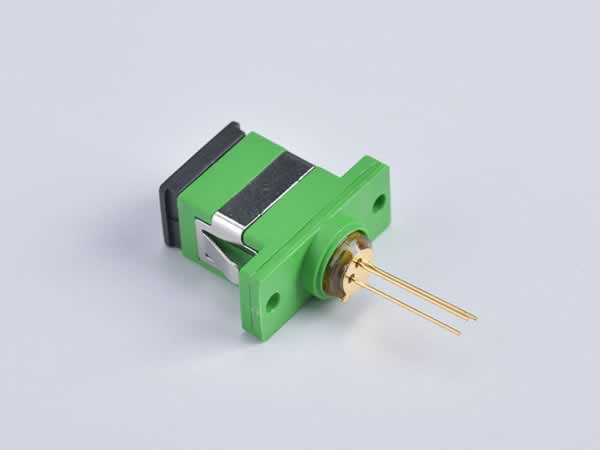

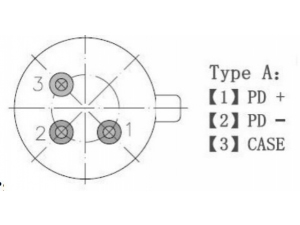

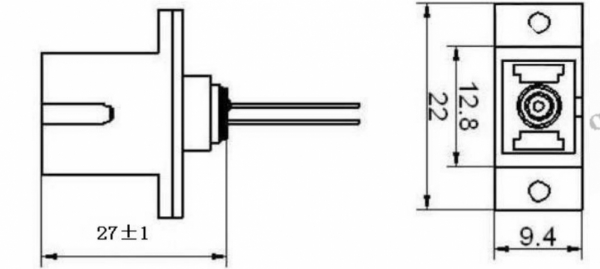

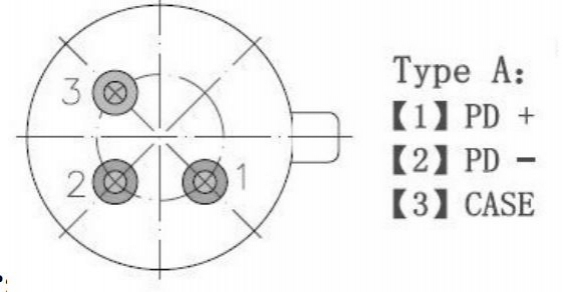

Small Area InGaAs Photodiode
The 1100nm-1650nm small area InGaAs photodiode uses an InGaAs detector chip, and features a low power consumption, small dark current, high sensitivity, great linearity, compact design and small volume. The equipment is most commonly used in CATV receivers, power detection equipment and optical signal receivers for analog systems.
Absolute Maximum Ratings| Parameter | Symbol | Ratings | Unit |
| Storage Temperature | Tstg | ~40〜+100 | °C |
| Operating Temperature | Top | -40〜+85 | °C |
| Max Input Power | Pmax | +4 | dBm |
| Operating Voltage | Vop | 5 | V |
| PD Reverse Voltage | VR(PD) | 25 | V |
| Soldering Temp | - | 260 | °c |
| Soldering Time | - | 10 | s |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Wavelength Range | λ | 1100 | - | 1650 | nm | - |
| Power Range | P | -70 | - | +4 | dBm | V=5V |
| Active Diameter | Ad | | 75 | | um | - |
| Dark Current | Id | - | 0.2 | 0.5 | nA | - |
| Responsivity | R | - | 0.85 | 0.90 | A/W | 入=1310 nm |
| | 0.90 | 0.95 | 入=1550 nm | |||
| Frequency Bandwidth | Bw | 1 | | 2000 | MHz | |
| Frequency Response | Fr | - | 土 0.5 | - | dB | |
| Capacitance | Ct | - | 0.65 | 0.75 | Pf | - |
| Response Time | Tr | 0.1 | - | | ns | - |
| Return loss | R1 | | | -45 | dB | |
| cso cso | - | - | -70 | - | dBc | 45~860MHz |
| CTB CTB | - | - | -80 | - | dBc | 45~860MHz |
We are a professional plug in InGaAs coaxial photodetector diode modules (analog optical active receptacle ROSA plug in) manufacturer in China. We also provide butterfly laser diodes, InGaAs coaxial pigtail laser detector diode, coaxial pigtail diode laser device and more.
