MEMS 1xN Optical Switches - SM/MM/PM

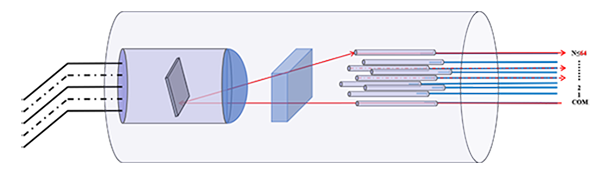

MEMS 1xN optical switch is based on micro-electro-mechanical system technology. It allows channel selection between an input fiber and up to N output fibers by rotating the MEMS mirror.
The switch is bi-directional and can also be used as an Nx1 selector switch. The optical switch offers highly reliable, durable, long-life operation in a compact package.
Features
- Proven MEMS durability and reliability
- Compact form factor
- Fast switching time
- Qualified to Telcordia GR-1073-CORE and RoHS requirements
Applications
- Fiber monitoring (working with OTDR or OCM)
- Optical network routing
- Fiber sensing
- Resource sharing
- Optical network protection and restoration
-

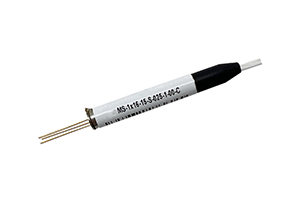

- MEMS SM 1xN Optical Switch - Cylindrical
Wavelength Range:13:1290~1330
15:1525~1568
16:1600-1650(nm)
Test Wavelength :1310/1550/1625(nm)
Channels: 2~128
-
- MEMS SM 1xN Optical Switch - Module
Wavelength Range :13:1290~1330
15:1525~1570
16:1600-1650(nm)
Test Wavelength :1310/1550/1625(nm)
Channels:2~64
-
- MEMS MM 1xN Optical Switch - Cylindrical
Wavelength Range: 8:850 only
13:1310 only
8/13:850/1310 (nm)
Test Wavelength:850/1310 nm
Channels:2~32
-
- MEMS MM 1xN Optical Switch - Module for OTDR
Wavelength Range: 8:850 only
13:1310 only (nm)
Test Wavelength :850 or 1310 (nm)
Channels 2~32
-
- MEMS PM 1xN Optical Switch – Cylindrical
Wavelength Range: 13:1290~1330
15:1525~1568(nm)
Test Wavelength: 1310 or 1550(nm)
Channels: 2~8
-
- MEMS MM 1xN Optical Switch - Module for OTDR
|
Wavelength Range :13:1290~1330
15:1525~1568(nm)
Test Wavelength :1310 or 1550(nm)
Channels:2~8
