Large Area InGaAs PIN Photodiode

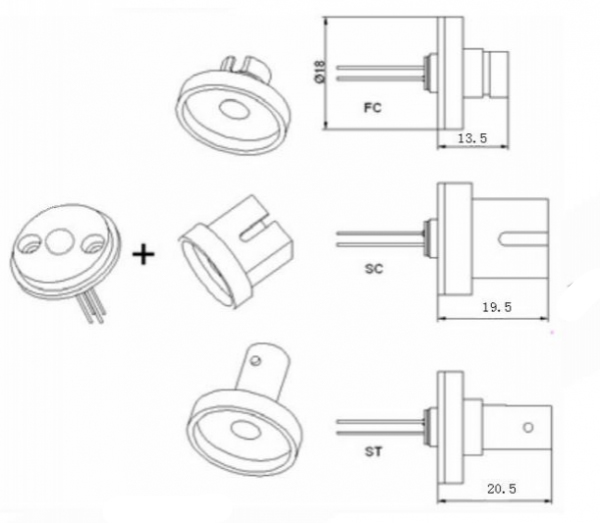

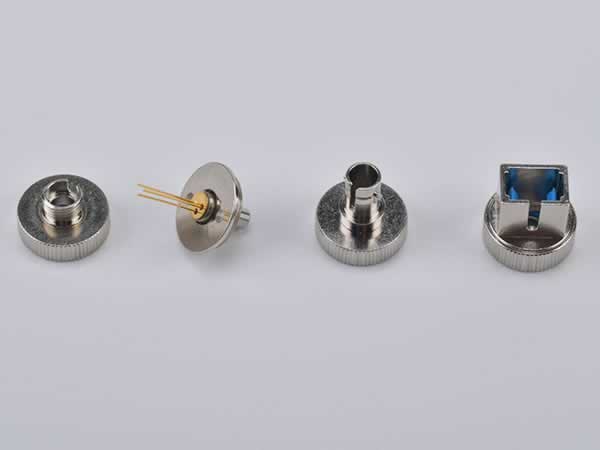

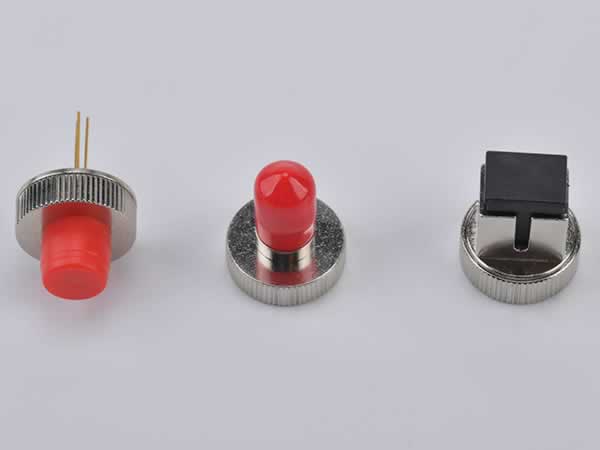

The large area of the InGaAs PD/photodiode pin for instrumentation features an InGaAs large area detector chip with a long wavelength, giving it a small dark current, a low power consumption, high sensitivity, small volume, and diverse structural designs. It also features a replaceable structure, allowing most fiber optic connector types to be compatible, and thus, facilitate maintenance and use. This product series is most often used in power detection equipment, hand held power meters, desktop power meters and optical multi-meters.

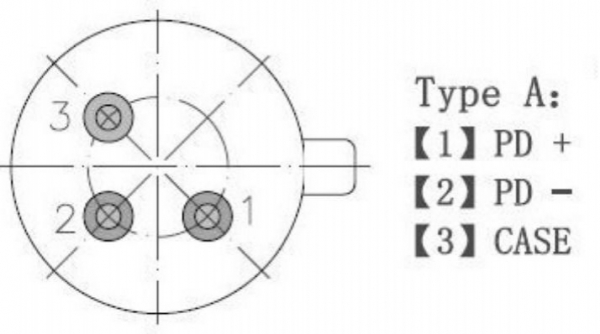

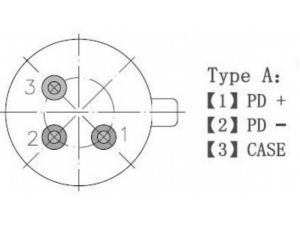

Absolute Maximum Ratings
Parameter Symbol Ratings Unit
Storage Temperature Tstg -40~+100 °C
Operating Temperature Top -40〜+85 °C
Operating Voltage Vop 5 V
PD Reverse Voltage VR(PD) 25 V
Soldering Temp - 260 °C
Soldering Time - 10 S
Optical & Electrical Characteristics
Parameter Symbol Min. Typ. Max. Unit Test Condition
Wavelength Range λ 850 - 1700 nm -
Power Range P -70 - 6 dBm Vop=5V
-60
16
-50
26
-40
36
Dark Current Id - - 1 nA 300μm
2 1000μm
5 2000μm
Responsivity R
0.85 - A/W λ=1310 nm

0.083 -

0.012 -

0.001 -
Accuracy - - - ±0.1 dB -
Capacitance Ct - - 25 Pf -
Response Time Tr - - 10 ns -

We are a professional plug in InGaAs coaxial photodetector diode modules (analog optical active receptacle ROSA plug in) manufacturer in China. We also provide butterfly laser diodes, InGaAs coaxial pigtail laser detector diode, coaxial pigtail diode laser device and more.
