MEMS optical cross-connect switch is an MxN switch matrix that allows the simultaneous connection of multiple inputs to output fibers in a fully non-blocking, all-optical, cross-connect configuration.

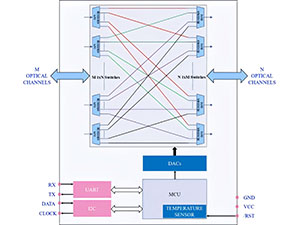

Amazelink’s OXC is based on industry-proven, long-life, reliable MEMS 1xN optical switch components. An MxN OXC is built by cascading M 1xN switches and N 1xM switches. Every input has a 1xN switch, while every output has an Mx1 switch. The output fibers of each 1xN are spliced to the N ports of each Mx1 to allow any input to connect to any output.
- Proven MEMS durability and reliability
- Compact form factor
- Fast switching time
- Qualified to Telcordia GR-1073-CORE and RoHS requirements
- Optical network routing
- Resource sharing in test & measurement applications
- Optical network protection and restoration
-
- MEMS SM Optical Cross-Connect Switch - Module 3 - MxN
(2 < M & N ≤16) Wavelength Range: 13:1290~1330 15:1525~1568 (nm)
Test Wavelength: 1310 or 1550 (nm)
Channels: 2~8
-
- MEMS SM Optical Cross-Connect Switch - Module 4 - MxN
(16 < M & N ≤64) Wavelength Range: 13:1290~1330 15:1525~1568 16:1600-1650(nm)
Test Wavelength: 1310 or 1550 or 1625(nm)
MxN 32x32/64x64
-
- MEMS MM Optical Cross-Connect Switch - Module 3 - MxN
(2 < M & N ≤16) Wavelength Range: 8:850 only 13:1310 only(nm)
Test Wavelength: 850/1310(nm)
MxN 4x4/8x8/16x16
-
- MEMS PM Optical Cross-Connect Switch - Module 3 - MxN
(2 < M & N ≤4) Wavelength Range: 8:850 only 13:1310 only(nm)
Test Wavelength: 850/1310(nm)
MxN 4x4/8x8/16x16
