Red Laser Diode

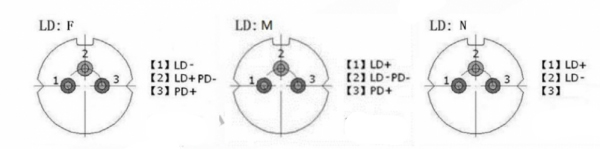

Top view
Note:
F Type pin Applicable Power 1-2mw
M Type pin Applicable Power 1-5mw
N Type pin Applicable Power 5-20 mw

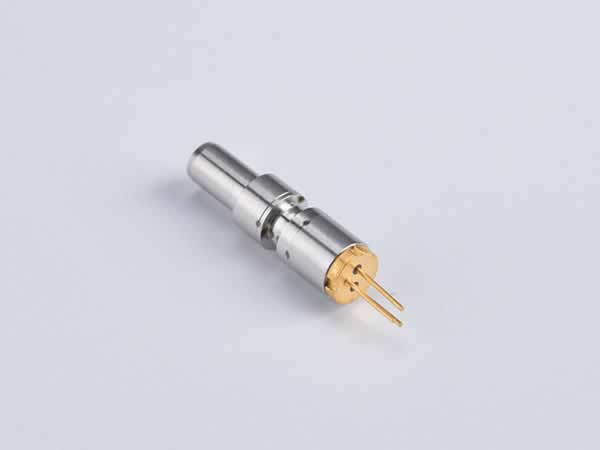

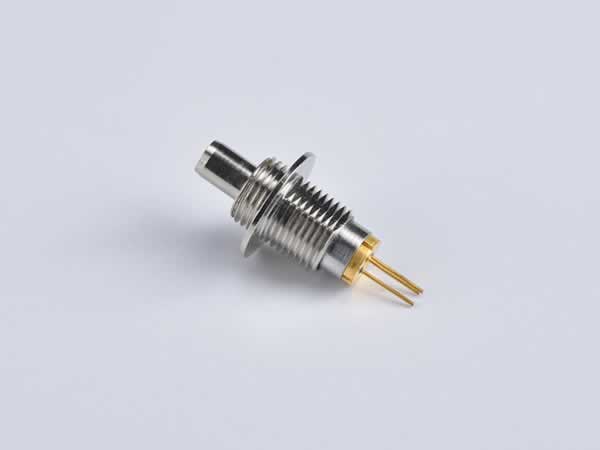

The 650nm red laser diode is provided in a coaxial plug-in type package. It uses a 635nm or 650nm red laser chip with an output power ranging from 1MW to 20MW. This device can be used as a fiber-optic indicator light, red laser pointer, and break point indicator. It is also applicable for use in medical fields.
Absolute Maximum Ratings| Parameter | Symbol | Value | Unit |
| LD Forward Current | IF(LD) | 200 | mA |
| LD Reverse Voltage | VR(LD) | 2 | V |
| PD Forward Current | IF(PD) | 2 | mA |
| PD Reverse Voltage | VR(PD) | 25 | V |
| Operating Temperature | TOP(LD) | -10 〜+60 | °c |
| Storage Temperature | TST | -40 〜+80 | °c |
| Soldering Temperature/Time | - | 240/10 | °C/S |
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Output Power | Po | 1 | - | 20 | mW |
| Operating Current | lop | 25 | - | 140 | mA |
| Operating Voltage | Vop | - | 2.2 | 2.8 | V |
| Center Wavelength | λ | 640 | 650 | 660 | nm |
| Spectral Width | Δλ | - | - | 4 | nm |
| Monitor Current | Im | 0.1 | 0.2 | 0.5 | mA |
| Rise/ Fall Time | Tr/Tf | - | - | 0.5 | ns |
As a specialized InGaAs Coaxial Plug in laser diodes (analog optical active component TOSA plug in) manufacturer in China, our company also offers plug in InGaAs coaxial photodetector diode modules, butterfly laser diodes, coaxial pigtail diode laser device, and more.
