WDM Laser Optical Module

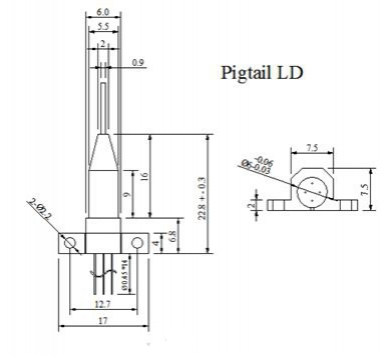

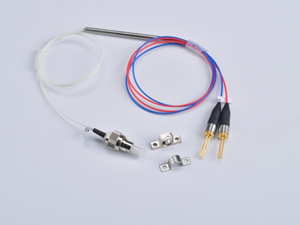

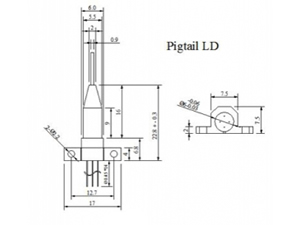

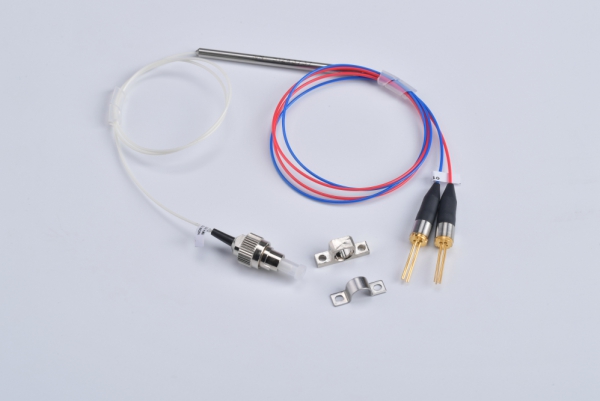

This WDM laser optical module is composed of a passive device and active device, and features a high isolation, a high linearity, and low noise levels. Transmission is a bidirectional transmission, which is widely used in OTDR, analog transmission systems and more. We will customize different product lengths and joints according to customer needs.
Absolute Maximum Ratings| Parameter | Symbol | Min. | Typical. | Max. | Unit |
| Reverse Voltage(LD) | Vrl | - | - | 2 | V |
| Forward Current (LD) | LfL | - | - | 150 | mA |
| Reverse Voltage (monitor) | Vrl | - | - | 15 | V |
| Reverse Current (monitor) | Lrp | - | - | 2 | mA |
| Soldering Temperature(< 10sec.) | Stemp | - | - | 260 | ℃ |
| Storage Temperature | Tstg | -40 | - | 85 | ℃ |
| Operating Temperature | Top | -20 | - | 85 | ℃ |
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| 1310nm FP Laser | ||||||
| Output Power | Po | 3 | 4 | | mW | CW,If=Ith+20mA |
| Slope Efficiency | SE | 0.15 | 0.20 | | mW/mA | |
| Threshold Current | Ith | | 10 | 15 | mA | CW |
| Operating Current | If | | 30 | 40 | mA | CW |
| Operating Voltage | Vf | | 1.2 | 1.5 | V | CW |
| Monitor Current | Im | 100 | | 900 | uA | Vrd=2V, If=Ith+20mA |
| Monitor Dark Current | Id | | 0.5 | 1 | nA | Vrd=5V |
| Cent Wavelength | λc | 1290 | 1310 | 1330 | nm | CW, If=Ith+20mA |
| Spectral Width(RMS) | Δλ | | | 4 | nm | -3dB |
| Spectral Shift | Δλ/ΔT | | | 0.2 | nm/℃ | CW, If=Ith+20mA |
| Bandwidth | - | | 2.5 | | GHz | |
| 1550nm FP Laser | ||||||
| Output Power | Po | 3 | | | mW | CW,If=Ith+20mA |
| Slope Efficiency | SE | 0.15 | | | mW/mA | |
| Threshold Current | Ith | | 10 | 15 | mA | CW |
| Operating Current | If | | 30 | 40 | mA | CW |
| Operating Voltage | Vf | | 1.2 | 1.5 | V | CW |
| Monitor Current | Im | 100 | | 900 | uA | Vrd=2V, If=Ith+20mA |
| Monitor Dark Current | Id | | 0.5 | 1 | nA | Vrd=5V |
| Cent Wavelength | λc | 1530 | 1550 | 1570 | nm | CW, If=Ith+20mA |
| Spectral Width(RMS) | Δλ | | | 4 | nm | -3dB |
| Spectral Shift | Δλ/ΔT | | | 0.2 | nm/℃ | CW, If=Ith+20mA |
| Bandwidth | - | | 2.5 | | GHz | |
