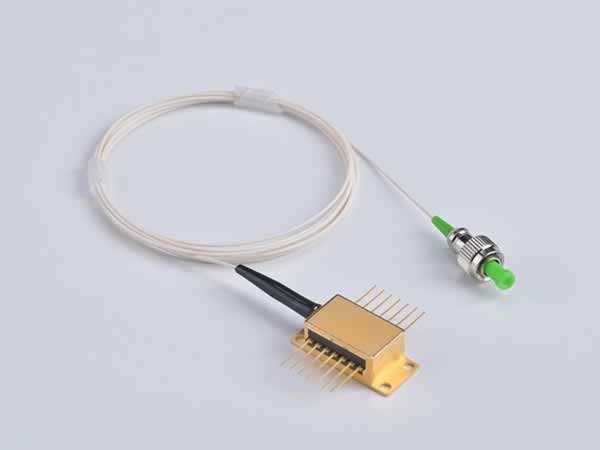

CWDM DFB Butterfly Laser Diode
- The 1MW-12MW 1270nm-1610nm CWDM DFB Butterfly Laser Diode uses a multi-quantum well chip, satisfying the requirements for high speed optical transmission systems with a specific wavelength.
- The built-in TEC ensures the normal operation in various environments.
- Our high-power laser module has a low threshold current, high optical power output and large spectral width, resulting in high stability during operation.

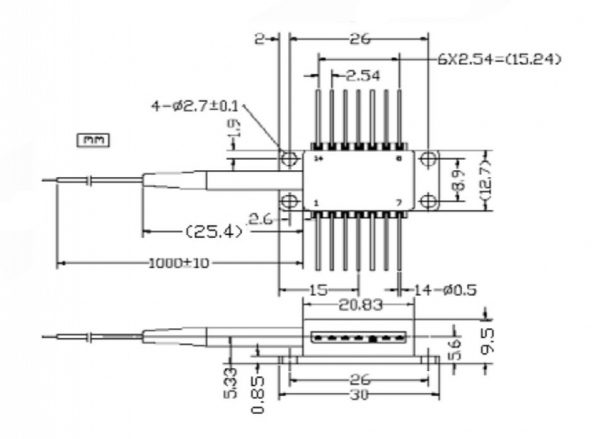

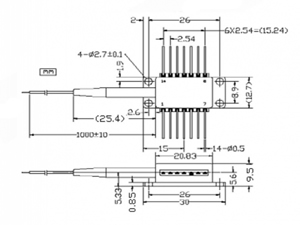

- It is encapsulated in a 14-pin butterfly package.
- The butterfly packaged laser diode is applicable for modulating light sources in the communication of CATV, FTTH, GSM, and more.
| Parameter | Symbol | Condition | Min. | Max. | Unit |
| Operating Temperature | Tc | I=Iop | -20 | 80 | °C |
| Storage Temperature | Tstg | - | -40 | 85 | °C |
| Laser Forward Current | If | - | - | 150 | mA |
| Laser Reverse Bias | Vr | - | - | 2 | V |
| Photodiode Reverse Bias | Vrpd | - | - | 10 | V |
| TEC Current | Itec | -20 °C < Tc < +65 °C, Top=25 °C If=100 mA | -2 | +2 | A |
| TEC Voltage | Vc | | -2.5 | +2.5 | V |
| ESD | - | ESD-HBM:R=1500 ohm, C=100 pF | -500 | +500 | V |
| Lead Solder Temperature | - | - | - | 260 | °c |
| Lead Soldering Time | - | - | - | 10 | s |
| Fiber Bend Radius | - | - | 30 | - | mm |
| Fiber Yield Strength | - | - | - | 1 | kgf |
| Parameter | Symbol | Test Conditions | Min. | Typ. | Max. | Unit |
| Center Wavelength | λc | Note1 | Note2 | nm | ||
| Spectral Width (-3 dB) | Δλ | CW | - | 0.5 | 1 | nm |
| Optical Output Power | Po | CW, TL=25 °C | - | - | 16 | mW |
| Optical Isolation | IS | T=25 °C | 30 | 35 | - | dB |
| Side-mode Suppression Ratio | SMSR | CW | 35 | 40 | - | dB |
| Threshold Current | Ith | TL=25 °C | - | 10 | 15 | mA |
| Operating Current | Iop | CW | - | - | 100 | mA |
| Forward Voltage | VF | CW | - | 1.2 | 2.0 | V |
| Monitor Current | Imon | Vrpd=5 V | 100 | - | 1500 | μA |
| Monitor Dark Current | ID | Vrpd=5 V | - | - | 100 | nA |
| Operating Temperature | Tc | - | -20 | - | 60 | °C |
| Tracking Error | γ | TE=10log(Po(Tc)/Po(25°C) | -1 | - | 1 | dB |
| Thermistor Resistance | Rt | T=25 °C | 9.5 | - | 10.5 | KΩ |
| Thermistor B Constant | B | T=25 °C | | 3900 | | K |
| TEC Current | IC | ΔΤ=40°C | - | - | 1.0 | A |
| TEC Voltage | VC | ΔΤ=40°C | - | - | 2.0 | V |
| Frequency Range | F | - | 45 | - | 2500 | MHz |
| Cut-off Frequency | Fc (-3dB) | If=Iop | 4 | - | - | GHz |
| RIN | Nr | CW, If=Iop, f=2.5GHz | - | -155 | -150 | dB/Hz |

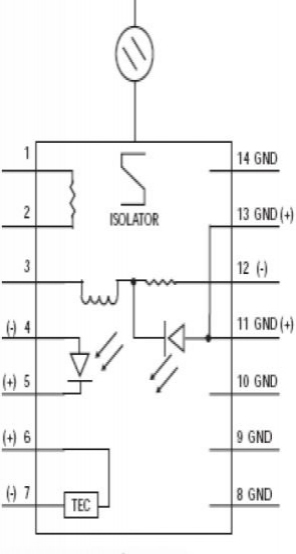

| Pin | Description | Pin | Description |
| 1 | Thermistor | 8 | Ground |
| 2 | Thermistor | 9 | Ground |
| 3 | LD (N) bias | 10 | Ground |
| 4 | Detector (P) | 11 | LD (P), ground |
| 5 | Detector (N) | 12 | LD (N), RF modulation |
| 6 | TEC (+) | 13 | LD (P), ground |
| 7 | TEC (-) | 14 | Ground |
As a professional butterfly laser diode (analog optical active receptacle) manufacturer and supplier in China, we also provide coaxial butterfly laser diode device, InGaAs coaxial butterfly laser detector diode, InGaAs Coaxial Plug in laser diodes, and more.
