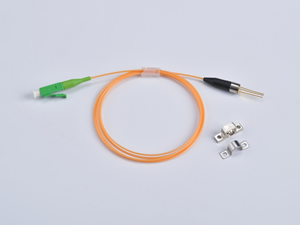

The 60mw 1550nm pulse laser module has a maximum output power of 60mw due to the use of a DFB or FP chip. Its high performance makes it ideal for use in OTDR systems.
Absolute Maximum RatingsParameter | Symbol | Min. | Max. | Unit |
Pulsed Forward Current | IFP | | 750 | mA |
Reverse Voltage | VR | | 2 | V |
Reverse Voltage (monitor PD) | VRM | | 10 | V |
Reverse Current (monitor PD) | IFPM | | 2 | mA |
Operating Temperature | TC | 0 | 60 | °C |
Storage Temperature | Tstg | -40 | 85 | °C |
Lead Soldering Temperature | Tsld | | 260(10s) | °c |
Relative Humidity (Noncoagulable) | RH | | 85 | % |
Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
Forward Voltage | VFP | | | 3.5 | V | IFP = 450 mA, PW = 10 μs, Duty = 1% |
Threshold Current | Ith | | 20 | 35 | mA | |
Optical Output Power From SM Fiber | Pf | 60 | | | mW | IFP =450 mA, PW = 10 μs, Duty = 1% |
Center Wavelength | λc | 1530 | 1550 | 1570 | nm | PW = 10 μs, Duty = 1% |
Spectral Width | σ | | | 4 | nm | RMS (-3 dB) |
Rise Time | tr | | 0.5 | 2.0 | ns | 10-90% |
Fall Time | tf | | 0.5 | 2.0 | ns | 90-10% |
Monitor Current | Im | 0.05 | | 2 | mA | VRM = 5 V |

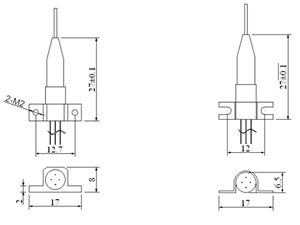

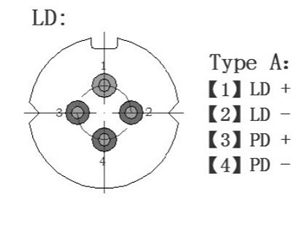

As an experienced FP pulsed diode laser (for OTDR system) manufacturer and supplier in China, our company also offers 8-10mw 1653.5nm Butterfly Laser Diode for gas detection, butterfly fiber coupled laser diodes, Pin TIA receiver, and more.
