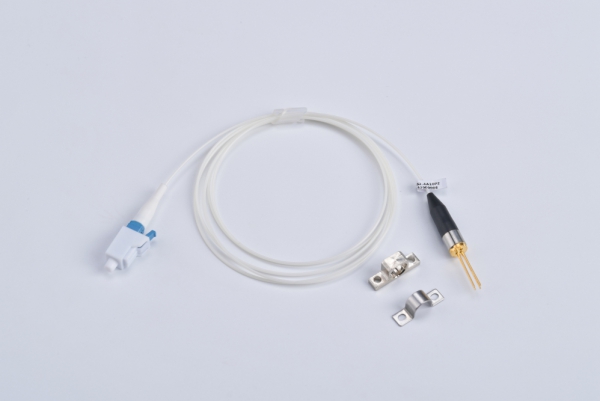

650nm Pigtailed Laser Diode Module

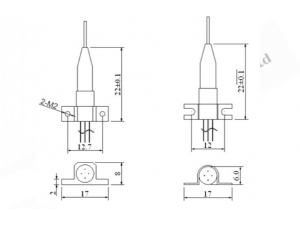

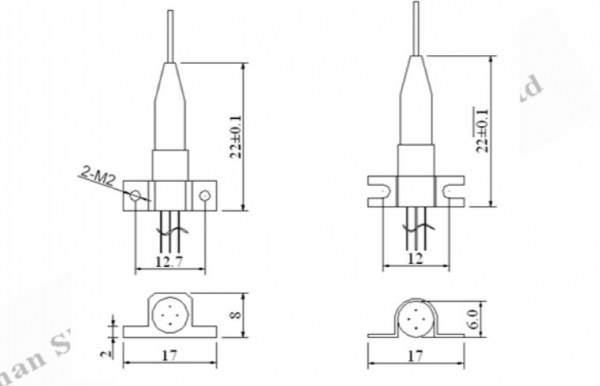

Top view

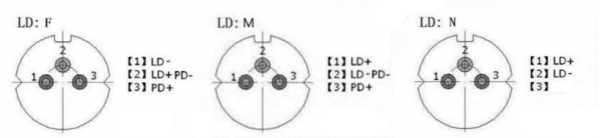

Note:
F Type pin Applicable Power 1-2mw
M Type pin Applicable Power 1-5mw
N Type pin Applicable Power 5-20 mw
The maximum output power of the 650nm pigtailed laser diode module can reach 20 mw, which is widely used in light sources and instruments. Different types of fibers and connectors can be customized based on customers' needs.
Absolute Maximum Ratings| Parameter | Symbol | Min. | Max. | Unit |
| Fiber Output Power | Po(CW) | | 20 | mW |
| Forward Current(LD) | If(LD) | | 180 | mA |
| Reverse Voltage(LD) | Vr(LD) | | 2 | V |
| Forward Current(PD) | If(PD) | | 2 | mA |
| Reverse Voltage(PD) | Vr(PD) | | 15 | V |
| Storage Temperature | Tstg | -40 | 85 | °c |
| Operating Temperature | To | -10 | 60 | °c |
| Lead Solder Temperature | - | | 260 | °c |
| Lead Solder Time | - | | 10 | s |
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Output Power | Po | 1 | - | 20 | mW |
| Threshold Current | Ith | - | 15 | 20 | mA |
| Operating Current | If | - | 30 | 140 | mA |
| Operating Voltage | Vf | - | 2.3 | 3.0 | V |
| Monitor Current | Im | - | - | 500 | uA |
| Cent Wavelength | λc | 650 | - | 660 | nm |
| Spectral Width (RMS) | Δλ | - | 2 | 3 | nm |
| Spectral Shift | Δλ/ΔT | - | - | 0.2 | nm/°C |
| Fiber | SM (4um or 9um), MM, etc. | ||||
Our company is a professional 405nm-980nm red visible light laser diode modules manufacturer and supplier in China. Our products include DFB pigtailed laser diode device, butterfly fiber coupled laser diodes, InGaAs Coaxial Plug in laser diodes, and more.
