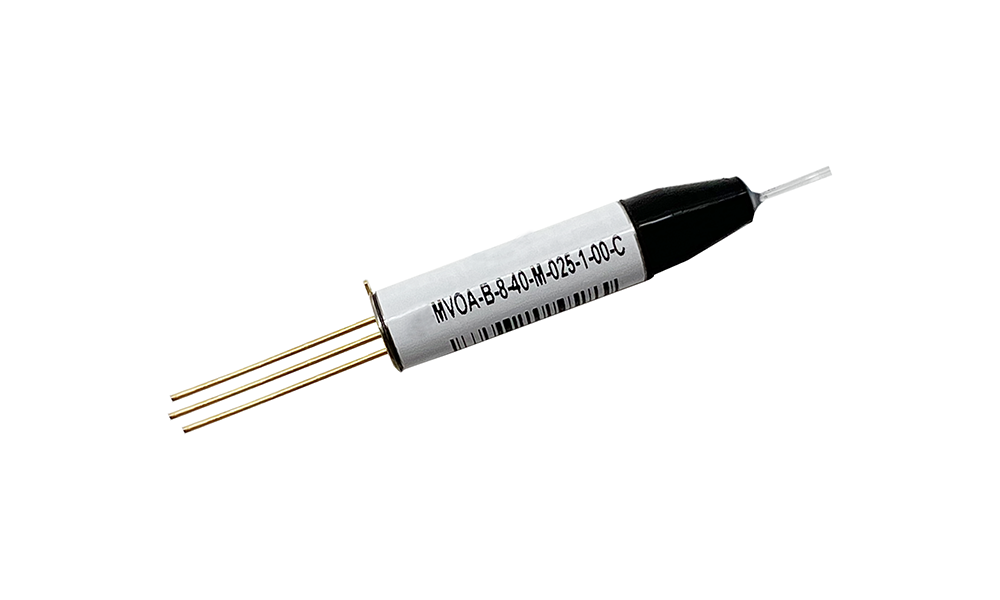

MEMS SM Variable Optical Attenuator Cylindrical

There are 2 variants available with different default states: The bright type or the dark type. The bright type has its lowest loss state at 0 V, while the dark type reaches its lowest insertion loss at a voltage between 30-40 V.

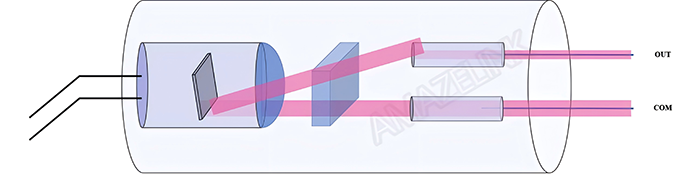

The VOA offers highly reliable, durable, long-life operation in a compact package.

Optical Specifications
PARAMETER VALUE UNIT NOTE
Wavelength Range 8:850 only
13:1310 only		 nm Single-band: 8, 9, or 13
Dual-band: 8&13
Test Wavelength 850/1310 nm Each test wavelength is the CWL
of a specific wavelength range
Attenuation Type Dark or Bright
Attenuation Range 30 dB
Attenuation Resolution Continuous
Attenuation Repeatability ≤0.1 Repeatability is defined after
100 cycles
Insertion Loss @8 or 13: ≤0.8 dB IL is measured at CWL, 23° C
@8&13: ≤2.0
Return Loss ≥35 dB
Durability ≥1x10⁹ cycle
Maximum Optical Power ≤500 mW

（All specifications are without connectors unless otherwise specified.）

Electrical and Mechanical Specifications
PARAMETER VALUE UNIT NOTE
Latching Type Non-latching
Control Type Direct voltage
Drive Voltage ≤40 V Cylindrical package
Resistance 2M Ω
Power Consumption Close to 0 W
Dimension Ø5.5×26 mm Cylindrical package

（All specifications apply to MSX M3.）

Environmental Conditions
PARAMETER VALUE UNIT NOTE
Operation Temperature -5~65 °C
Storage Temperature -40~85 °C
Operation Humidity 5~95 %RH
Storage Humidity 5~95 %RH
Ordering Information Ordering Information

MEMS Variable Optical Attenuator Cylindrical - SM/MM/PM
