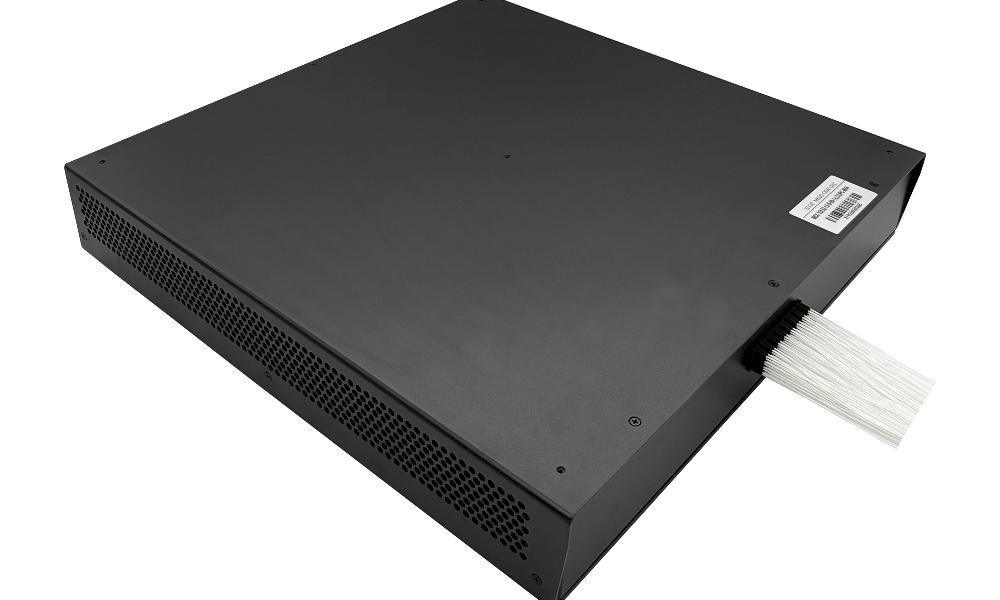

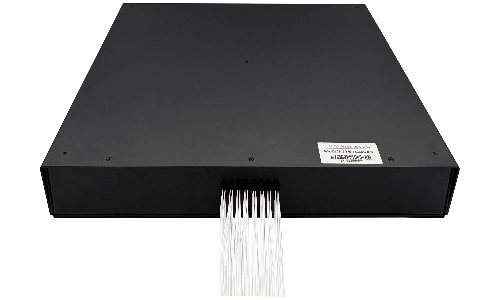

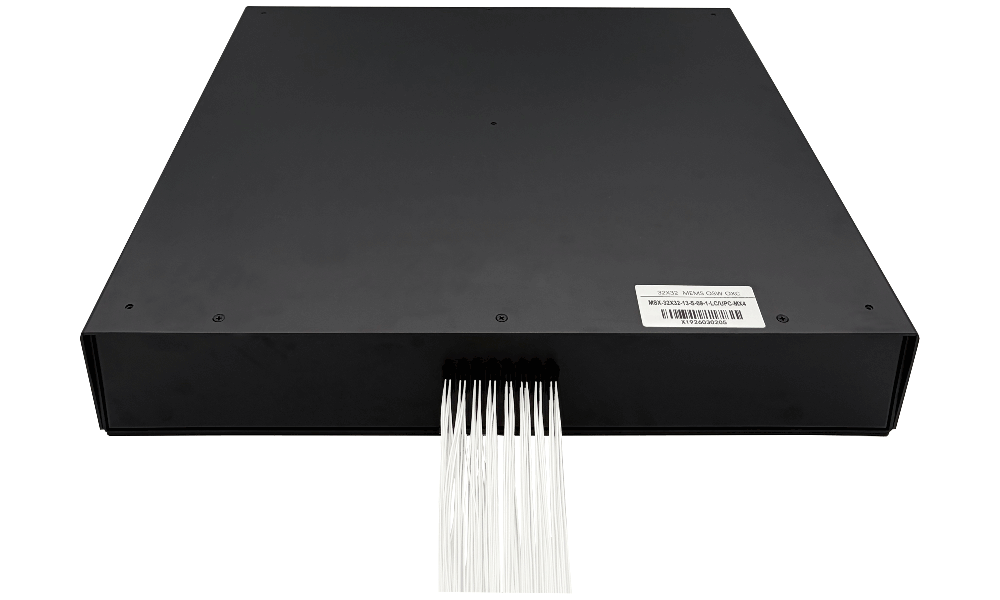

MEMS SM Optical Cross-Connect Switch - Module 4 - MxN
(16 < M & N ≤ 64)

•

•

Request a Quote

Optical Specifications

PARAMETER	VALUE	UNIT	NOTE
Wavelength Range	13:1290~1330 15:1525~1568 16:1600-1650	nm	Single-band: 13, 15, or 16
Test Wavelength	1310 or 1550 or 1625	nm	Each test wavelength is the CWL of a specific wavelength range
MxN	32x32/64x64		M+N≤128 & 2≤M, N≤64
Insertion Loss	32x32: ≤2.4	dB	IL is measured at CWL, 23° C If with standard connectors, IL increases by 0.2~0.3dB
	64x64: ≤3.0
Return Loss	≥45	dB	Or customer-defined
Repeatability	≤0.1	dB	Repeatability is defined after 100 cycles
Crosstalk	≥55	dB	Or customer-defined
Polarization Dependent Loss	≤0.35	dB
Wavelength Dependent Loss	≤0.8	dB	WDL is measured at CWL ±20nm, 23° C
Temperature Dependent Loss	≤0.8	dB
Switch Time	≤20	ms	One set of connection configurations Excluding protocol transmission time When using optimized voltage ramp
Durability	≥1x10⁹	cycle
Maximum Optical Power	≤500	mW

（All specifications are without connectors unless otherwise specified.）

Electrical and Mechanical Specifications

PARAMETER	VALUE	UNIT	NOTE
Latching Type	Non-latching
Control Type	UART
Supply Voltage	12±0.6	V	Module type
Power Consumption	≤12	W	32x32
	≤24		64x64
Connector Type	DB15		Male
Dimension	350x350x50	mm	32x32
	440x440x75		64x64

Environmental Conditions

PARAMETER	VALUE	UNIT	NOTE
Operation Temperature	-5~65	°C
Storage Temperature	-40~85	°C
Operation Humidity	5~95	%RH
Storage Humidity	5~95	%RH
