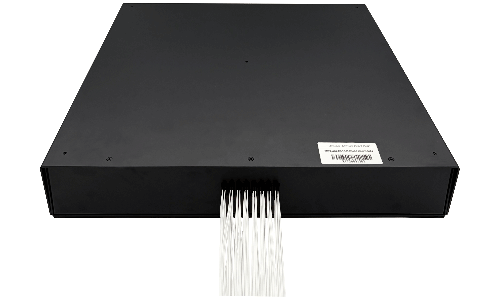

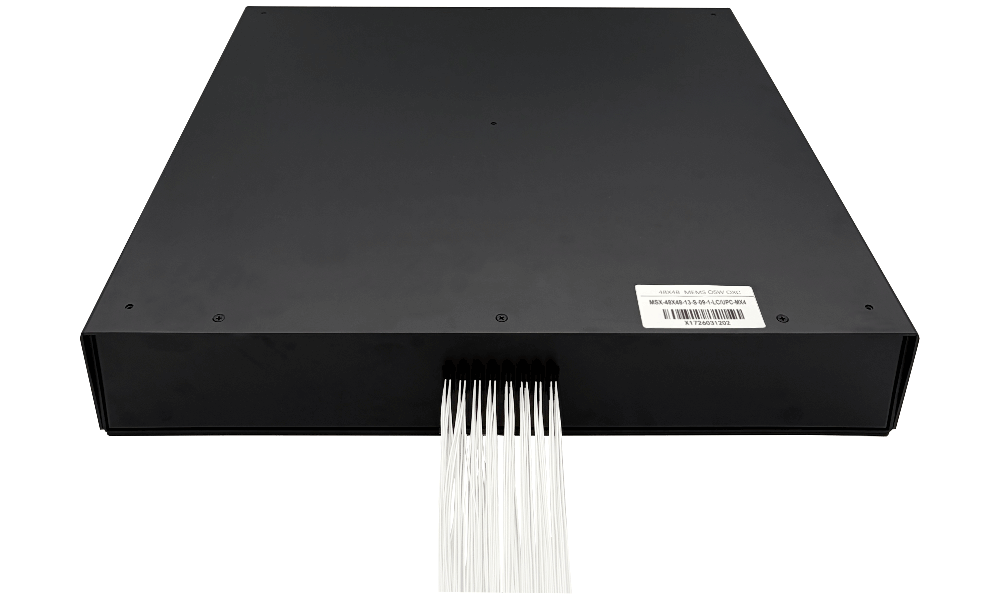

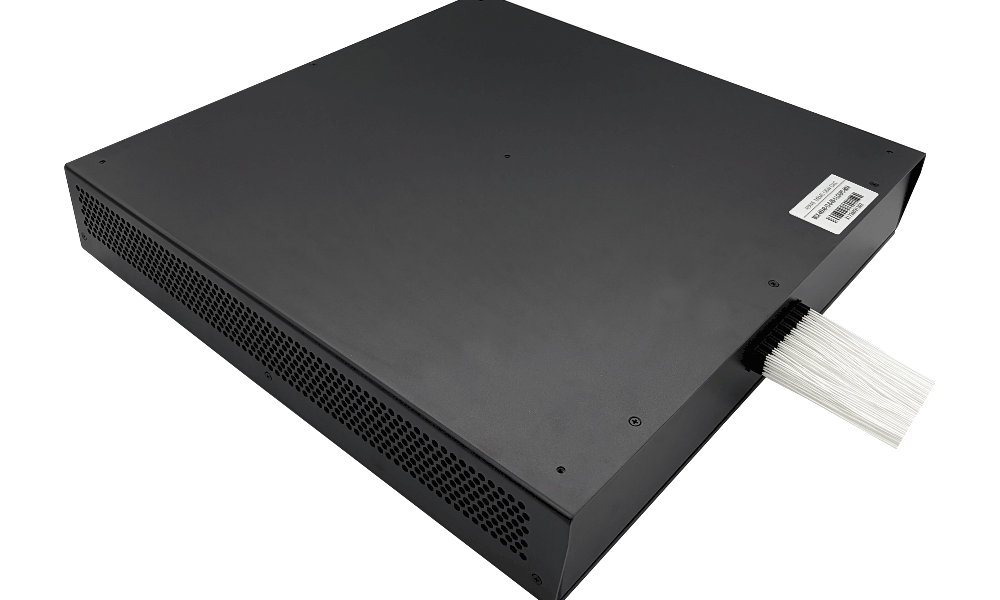

MEMS MM Optical Cross-Connect Switch - Module 3 - MxN
(2 < M & N ≤16)

•

•

Request a Quote

Optical Specifications

PARAMETER	VALUE	UNIT	NOTE
Wavelength Range	8:850 only 13:1310 only	nm	Single-band: 8 or 13 Dual-band: 8&13
Test Wavelength	850/1310	nm	Each test wavelength is the CWL of a specific wavelength range
MxN	4x4/8x8/16x16		M+N≤32 & 2≤M, N≤20
Insertion Loss @8	4x4: ≤1.7	dB	IL is measured at CWL, 23° C If with standard connectors, IL increases by 0.2~0.3dB
	8x8: ≤2.1
	16x16: ≤2.9
Return Loss	≥30	dB	Or customer-defined
Repeatability	≤0.1	dB	Repeatability is defined after 100 cycles
Crosstalk	≥40	dB	Or customer-defined
Temperature Dependent Loss	≤0.6	dB
Switch Time	≤5	ms	One set of connection configurations Excluding protocol transmission time When using optimized voltage ramp
Durability	≥1x10⁹	cycle
Maximum Optical Power	≤500	mW

（All specifications are without connectors unless otherwise specified.）

Electrical and Mechanical Specifications

PARAMETER	VALUE	UNIT	NOTE
Latching Type	Non-latching
Control Type	UART
Supply Voltage	5~12	V
Power Consumption	≤5	W	8x8
	≤6.3		12x12
	≤7.5		16x16
Dimension	158x150x29	mm

(All specifications apply to MSX M3.)

Environmental Conditions

PARAMETER	VALUE	UNIT	NOTE
Operation Temperature	-5~65	°C
Storage Temperature	-40~85	°C
Operation Humidity	5~95	%RH
Storage Humidity	5~95	%RH
