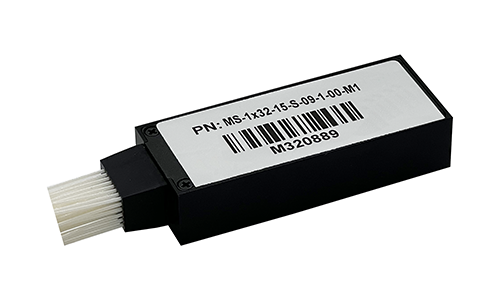

MEMS SM 1xN Optical Switch - Module

Optical Specifications
PARAMETER VALUE UNIT NOTE
Wavelength Range 13:1290~1330
15:1525~1570
16:1600-1650 		nm Single-band: 13, 15, or 16
Dual-band: 13&15 or 15&16
Test Wavelength 1310/1550/1625 nm Each test wavelength is the CWL of a specific wavelength range
Channels 2~64   N
Insertion Loss 1x2 ≤0.6 dB 1. IL is measured at CWL, 23°C
2. IL is for Single-band. Dual-band adds 0.2dB
3. If with standard connectors, IL increases by 0.2~0.3dB
1x4 ≤0.8
1x8
1x12 ≤1.0
1x16
1x24 ≤1.2
1x32
1x48 ≤1.3
1x64
Return Loss ≥45 dB Or customer-defined
Repeatability ≤0.05 dB Repeatability is defined after 100 cycles
Crosstalk ≥45 dB Or customer-defined
Polarization Dependent Loss ≤0.2 dB
Wavelength Dependent Loss N≤32 ≤0.3 dB WDL is measured at CWL ±20nm, 23°C
32<N ≤ 64 ≤0.4
Temperature Dependent Loss N≤32 ≤0.3 dB
32<N ≤ 64 ≤0.4
Switch Time N≤16 ≤5 ms 1. Excluding protocol transmission time
2. When using optimized voltage ramp
3. Faster 1xN switching time version available upon request
16<N ≤ 64 ≤0.10
Durability ≥1x10⁹ cycle
Maximum Optical Power ≤500 mW
Electrical and Mechanical Specifications
PARAMETER VALUE UNIT NOTE
Latching Type Non-latching
Control Type UART or parallel
Supply Voltage 5±0.25 V
Power Consumption ≤0.7 W

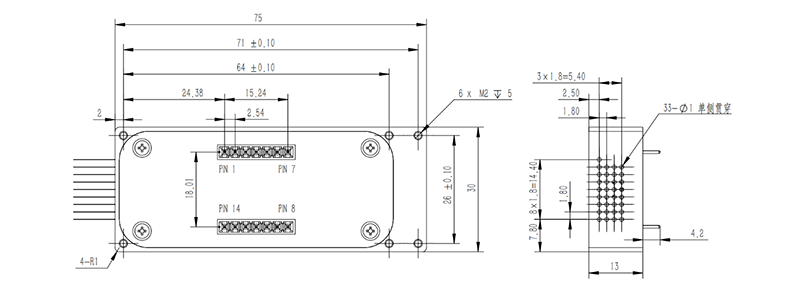

Dimension 68x30x13 mm 2≤N≤16
75x30x13 16 < N≤32
75x30x16.4 32 < N≤48
80x30x18 48 < N≤64
Environmental Conditions
PARAMETER VALUE UNIT NOTE
Operation Temperature -5~65 °C
Storage Temperature -40~85 °C
Operation Humidity 5~95 %RH
Storage Humidity 5~95 %RH

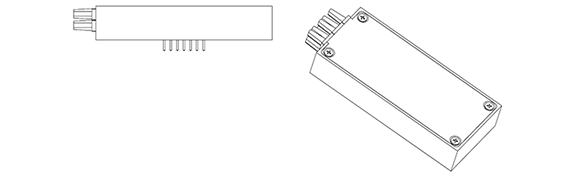

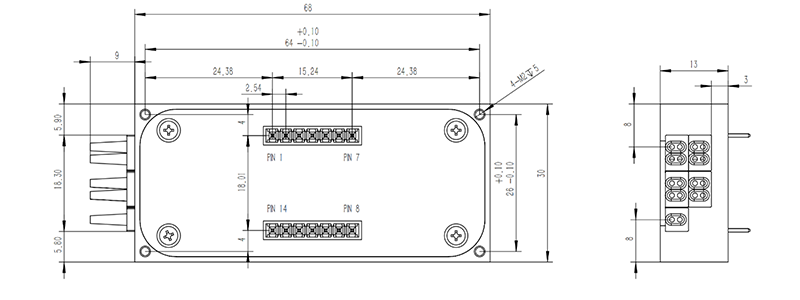

  • Module Type 1 (1xN, 2≤N≤16)

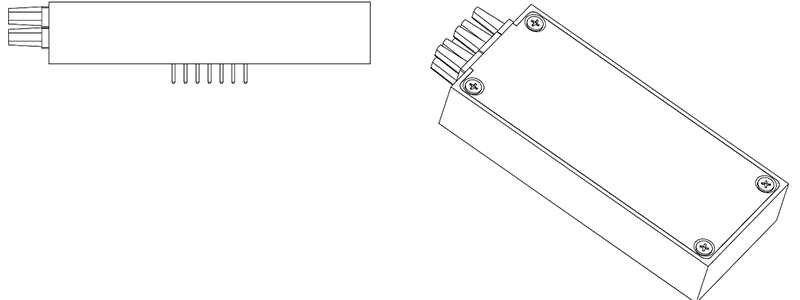

  • Module Type 2 (1xN, 16⁢N≤32)

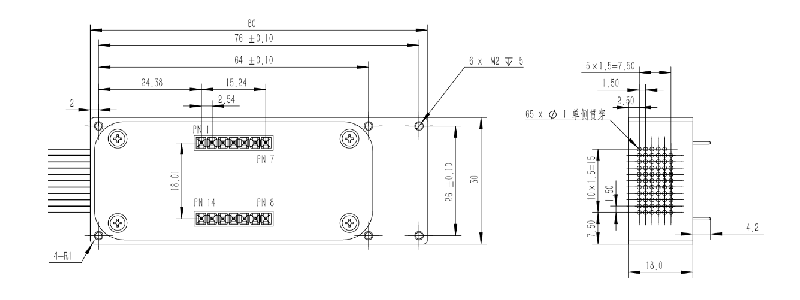

  • Module Type 3 (1xN, 32⁢N≤48)

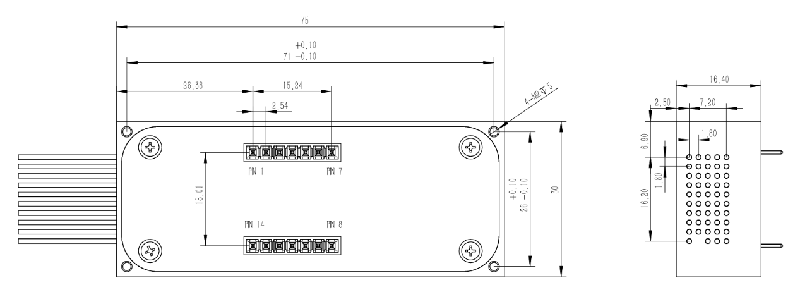

  • Module Type 4 (1xN, 48⁢N≤64)
Ordering Information Ordering Information

MEMS 1xN Optical Switches - SM/MM/PM
Inquiry
