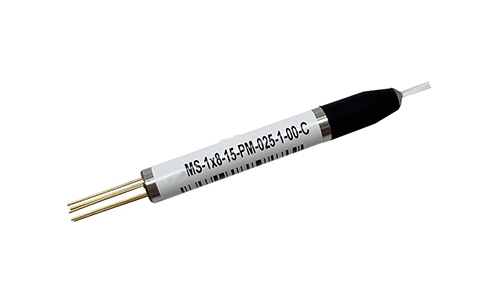

MEMS PM 1xN Optical Switch – Cylindrical

Optical Specifications
PARAMETER VALUE UNIT NOTE
Wavelength Range 13:1290~1330
15:1525~1568		 nm Single-band: 13 or 15
Test Wavelength 1310 or 1550 nm Each test wavelength is the CWL of a specific wavelength range
Channels 2~8 N
Insertion Loss 1x2 ≤1.0 dB IL is measured at CWL, 23° C
If with connectors, IL increases by 0.2~0.3dB
1x4 ≤1.2
1x8 ≤1.4
Return Loss ≥45 dB Or customer-defined
Repeatability ≤0.05 dB Repeatability is defined after 100 cycles
Crosstalk ≥45 dB Or customer-defined
Polarization Dependent Loss ≤0.2 dB
Wavelength Dependent Loss ≤0.3 dB WDL is measured at CWL ±20nm, 23° C
Temperature Dependent Loss ≤0.3 dB
Extinction Ratio ≥18 dB
Switch Time ≤5 ms 1.Excluding protocol transmission time
2.When using optimized voltage ramp
3.Faster 1xN switching time version available upon request
Durability ≥1x10⁹ cycle
Maximum Optical Power ≤500 mW

（All specifications apply to cylindrical package.）

Electrical and Mechanical Specifications
PARAMETER VALUE UNIT NOTE
Latching Type Non-latching
Control Type Direct voltage
Supply Voltage <60 V
Power Consumption Close to 0 W
Dimension Ø6.3×43 mm

（All specifications apply to MS M1）

Environmental Conditions
PARAMETER VALUE UNIT NOTE
Operation Temperature -5~65 °C
Storage Temperature -40~85 °C
Operation Humidity 5~95 %RH
Storage Humidity 5~95 %RH
