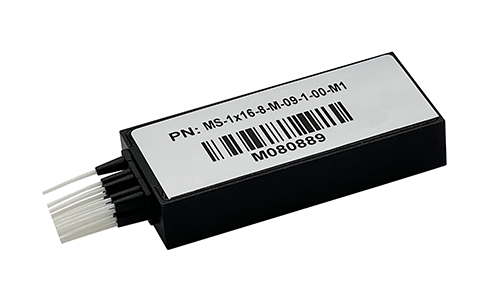

MEMS MM 1xN Optical Switch - Module

Optical Specifications
PARAMETER VALUE UNIT NOTE
Wavelength Range 8:850 only
13:1310 only		 nm Single-band: 8 or 13
Test Wavelength 850 or 1310 nm Each test wavelength is the CWL of a specific wavelength range
Channels 2~32 N
Insertion Loss @8 1x2 ≤0.8 dB 1. IL is measured at CWL, 23° C
2. If with standard connectors, IL increases by 0.2~0.3dB
1x4
1x8 ≤1.0
1x12 ≤1.2
1x16 ≤1.4
1x24 ≤1.6
1x32 ≤1.8
Insertion Loss @8&13 1x2 ≤1.2
1x4
1x8 ≤1.4
1x12
1x16 ≤1.6
1x24 ≤2.0
1x32 ≤2.4
Return Loss ≥30 dB Or customer-defined
Repeatability ≤0.05 dB Repeatability is defined after 100 cycles
Crosstalk N≤16 ≥30 dB Or customer-defined
16⁢N≤32 ≥25
Temperature Dependent Loss N≤16 ≤0.3 dB
16⁢N≤32 ≤0.4 dB
Switch Time 2≤N≤16 ≤5 ms 7. Excluding protocol transmission time
8. When using optimized voltage ramp
9. Faster 1xN switching time version available upon request
16⁢N≤32 ≤10
Durability ≥1x10⁹ cycle
Maximum Optical Power ≤500 mW
Electrical and Mechanical Specifications
PARAMETER VALUE UNIT NOTE
Latching Type Non-latching
Control Type UART or parallel
Supply Voltage 5±0.25 V
Power Consumption ≤0.7 W
Dimension 68x30x13 mm 2≤N≤16
75x30x13 16⁢N≤32

（All specifications apply to MS M1）
