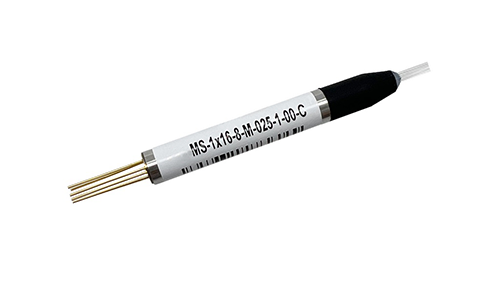

MEMS MM 1xN Optical Switch - Cylindrical

Optical Specifications
PARAMETER VALUE UNIT NOTE
Wavelength Range 8:850 only
13:1310 only
8/13:850/1310		 nm Single-band: 8 or 13
Dual-band: 8&13
Test Wavelength 850/1310 nm Each test wavelength is the CWL of a specific wavelength range
Channels 2~32 N
Insertion Loss @8 1x2 ≤0.8 1. IL is measured at CWL, 23° C
2. If with connectors, IL increases by 0.2~0.3dB
1x4
1x8 ≤1.0
1x12 ≤1.2
1x16 ⁢/td> ≤1.4
1x24 ≤1.6
1x32 ≤1.8
Insertion Loss @8&13 1x2 ≤1.2
1x4
1x8 ≤1.4
1x12
1x16 ⁢/td> ≤1.6
1x24 ≤2.0
1x32 ≤2.4
Return Loss ≥30 dB Or customer-defined
Repeatability ≤0.05 dB Repeatability is defined after 100 cycles
Crosstalk N≤16 ⁢/td> ≥30 dB Or customer-defined
16 ⁢N≤32 ≥25
Temperature Dependent Loss 2≤N≤16 ⁢/td> ≤0.3 dB
16 ⁢N≤32 ≤0.4 dB
Switch Time 2≤N≤16 ⁢/td> ≤5 ms 1. Excluding protocol transmission time
2. When using optimized voltage ramp
3. Faster 1xN switching time version available upon request
16 ⁢N≤32 ≤10
Durability ≥1x10⁹ cycle
Maximum Optical Power ≤500 mW
Electrical and Mechanical Specifications
PARAMETER VALUE UNIT NOTE
Latching Type Non-latching
Control Type Direct voltage
Supply Voltage <15 V N≤2
<60 2<N≤32
Power Consumption Close to 0 W
Dimension Ø5.5×26 mm N≤2
Ø6.3×43 2<N≤16
Ø6.3×47 16<N≤32

（All specifications apply to cylindrical package.）
